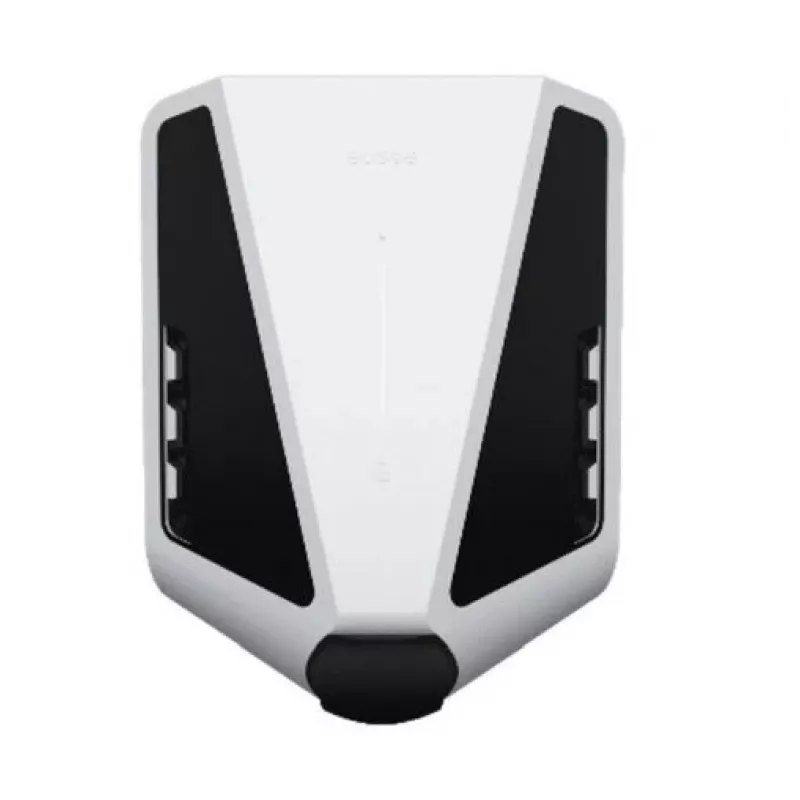

Wallbox EASEE Charge Max MID bílý - 22kW, Type 2, WLAN, 4G, RFID (10232)

For EV drivers who need fast, reliable charging at home or at a small business, the EASEE Charge Max Wallbox delivers 22 kW of three-phase power through a Type 2 socket. Mount it on a wall in a garage, carport, or outdoor parking area, then start a session with an RFID card or the Easee app. The integrated MID-certified energy meter tracks consumption accurately for billing or reimbursement.

Key specifications

• Maximum charging power: 22 kW (3-phase)
• Connector type: Type 2 socket
• Input voltage: 230V / 400V AC (±10%)
• Maximum current: 32A (3-phase)
• Energy meter: MID certified (accuracy ±1%)
• Connectivity: Wi-Fi (2.4 GHz), 4G (eSIM), Bluetooth
• Authentication: RFID, Easee app
• Integrated protection: RCD Type B equivalent, overcurrent, overvoltage, undervoltage, temperature
• IP rating: IP54
• IK rating: IK10
• Operating temperature: -30°C to +50°C
• Load balancing: dynamic (via Easee Equalizer or Cloud)
• Software updates: over-the-air (OTA)
• Communication protocol: OCPP 1.6J

Why choose it

The Charge Max is built for demanding environments. Its IP54 and IK10 ratings mean it withstands dust, rain, and impacts, while the wide operating temperature range suits cold winters and hot summers. With Wi-Fi, 4G, and Bluetooth, you can monitor and control charging remotely. The MID meter provides accurate energy data for cost tracking.

Ideal use cases

• Home charging for EVs with 22 kW onboard chargers
• Workplace charging for employees or fleet vehicles
• Commercial parking areas requiring billing-grade metering

Good to know

The wallbox supports dynamic load balancing to avoid overloading your electrical installation. It receives automatic software updates over the air, keeping it up to date without manual intervention.
