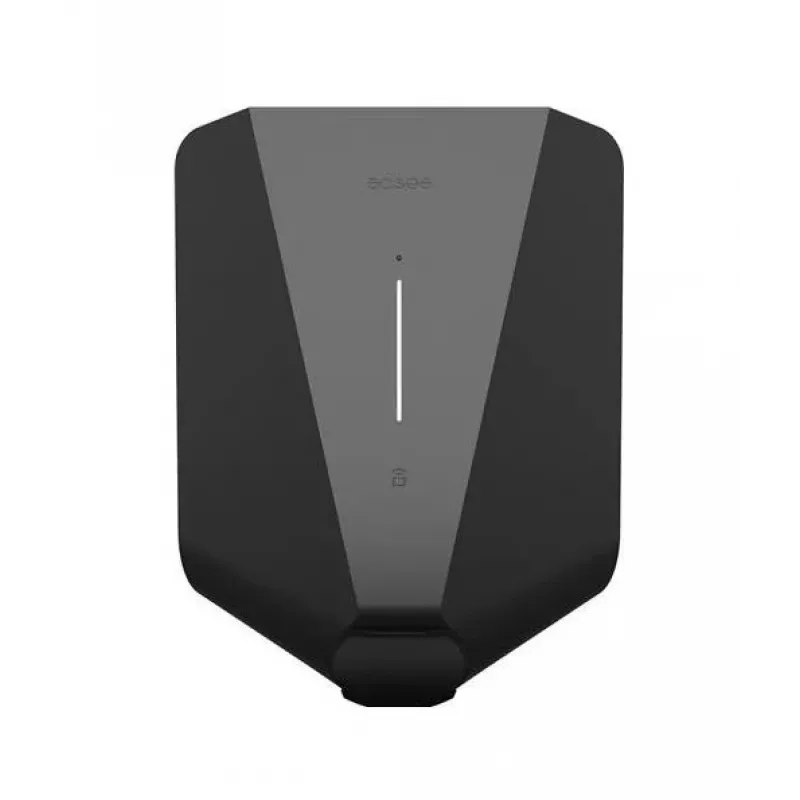

Nabíječka EV typu 2 EASEE Core 22 kW wallbox černá 10703

The EASEE Core wallbox delivers up to 22 kW of three-phase charging power, automatically adapting to single-phase installations for flexible EV charging at home or work. Its untethered Type 2 socket works with any standard charging cable, while integrated eSIM, Wi-Fi, and Bluetooth keep the unit connected for smart control and load balancing.

Highlights

• 22 kW maximum charging power (3-phase) / 7.4 kW (1-phase)
• Integrated RCD for AC and DC fault current detection (30 mA AC, 6 mA DC)
• Dynamic load balancing for up to 3 units on one circuit
• Built-in energy meter and RFID reader for access control
• IP54 and IK10 rated for outdoor and impact resistance

In daily use

Install the wall-mounted unit and pair it with the Easee app to monitor charging sessions, set schedules, and authorize users via RFID. The OCPP 1.6J protocol ensures compatibility with third-party management systems. The charger operates reliably in temperatures from -30°C to +50°C.

Full specifications

• Max charging current: 32 A
• Input voltage: 230V AC (1-phase) / 400V AC (3-phase)
• Frequency: 50/60 Hz
• Connectivity: Wi-Fi 2.4 GHz, Bluetooth Low Energy, integrated eSIM (4G LTE-M)
• Communication protocol: OCPP 1.6J
• Operating temperature: -30°C to +50°C
• IP rating: IP54
• IK rating: IK10
• Installation type: Wall-mounted
• Product colour: Black

Final note

The EASEE Core is a robust, connected charging solution for electric vehicle owners who need high power and smart energy management.
