DisplayPort kabel Equip 119255 5 m

The equip® DisplayPort Cable (Model 119255) is a 5 m digital audio and video cable designed for connecting computers to monitors, projectors or home-theater systems. Compliant with CE and RoHS, this DisplayPort 1.4 cable supports high-speed data transfer and is intended as a modern replacement for VGA, DVI and older HDMI connections.

Advantages

This DisplayPort cable supports a maximum bandwidth of 32.4 Gbps, enabling display resolutions up to 8K Ultra HD (7680 x 4320 @ 60 Hz). With DisplayPort connectors on both ends and a 5 m length, it provides reliable signal transmission for longer cable runs. The cable is finished in black and the product meets CE and RoHS certifications for safety and environmental standards.

Suitable for

• Connecting desktop PCs to DisplayPort monitors
• Linking laptops or workstations to projectors with DisplayPort input
• Integrating a PC with a home-theatre or AV receiver that accepts DisplayPort
• Setups requiring a 5 m cable run without active extension

Key specifications

• Model: Equip 119255
• Connector type: DisplayPort to DisplayPort
• Standard: DisplayPort 1.4
• Maximum bandwidth: 32.4 Gbps
• Maximum supported resolution: up to 8K UHD (7680 x 4320 @ 60 Hz)
• Cable length: 5 m
• Colour: Black

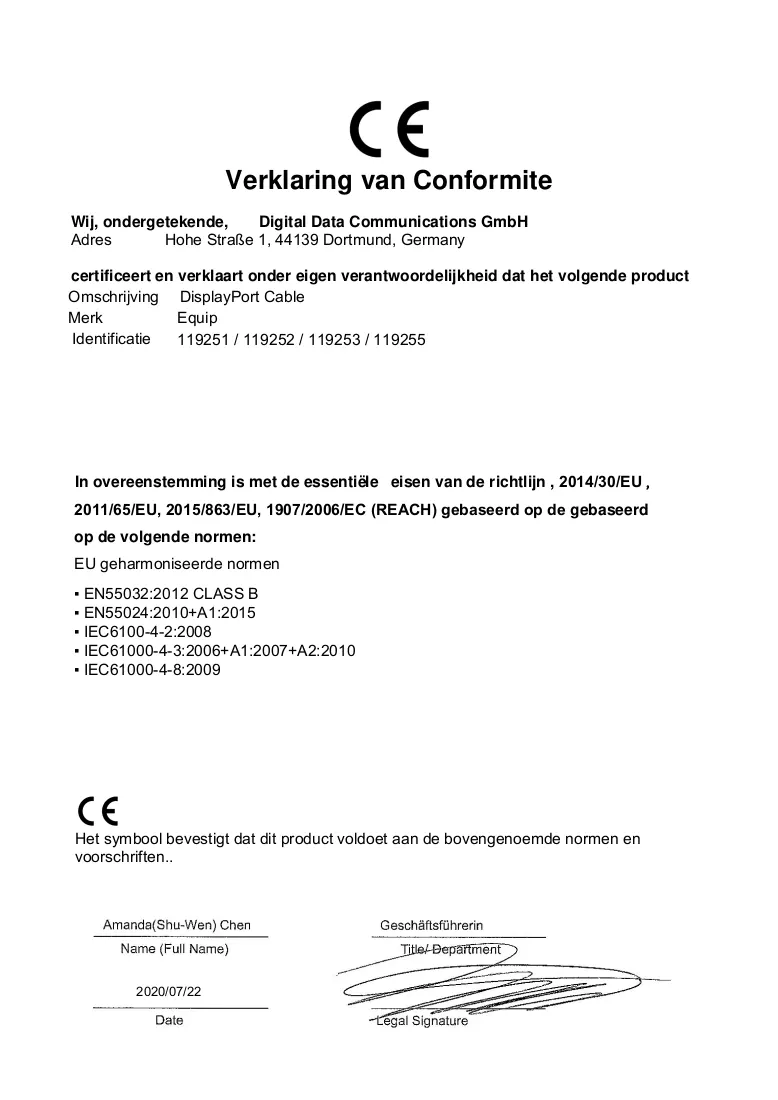

• Certifications: CE, RoHS
• Weight: 0.404 kg

How to use

Connect one DisplayPort plug to the DisplayPort output on your computer or laptop and the other plug to the DisplayPort input on your monitor, projector or AV device. Ensure both devices are powered on and set the display input to the DisplayPort source. For optimal performance, use secure, fully inserted connections and avoid tight bends or kinks in the cable along the run.

Recommendations

For best results at high resolutions (4K and 8K), use direct connections whenever possible and keep cable runs within recommended distances. If you experience signal issues over longer runs, consider using an active repeater or a certified active DisplayPort cable.
