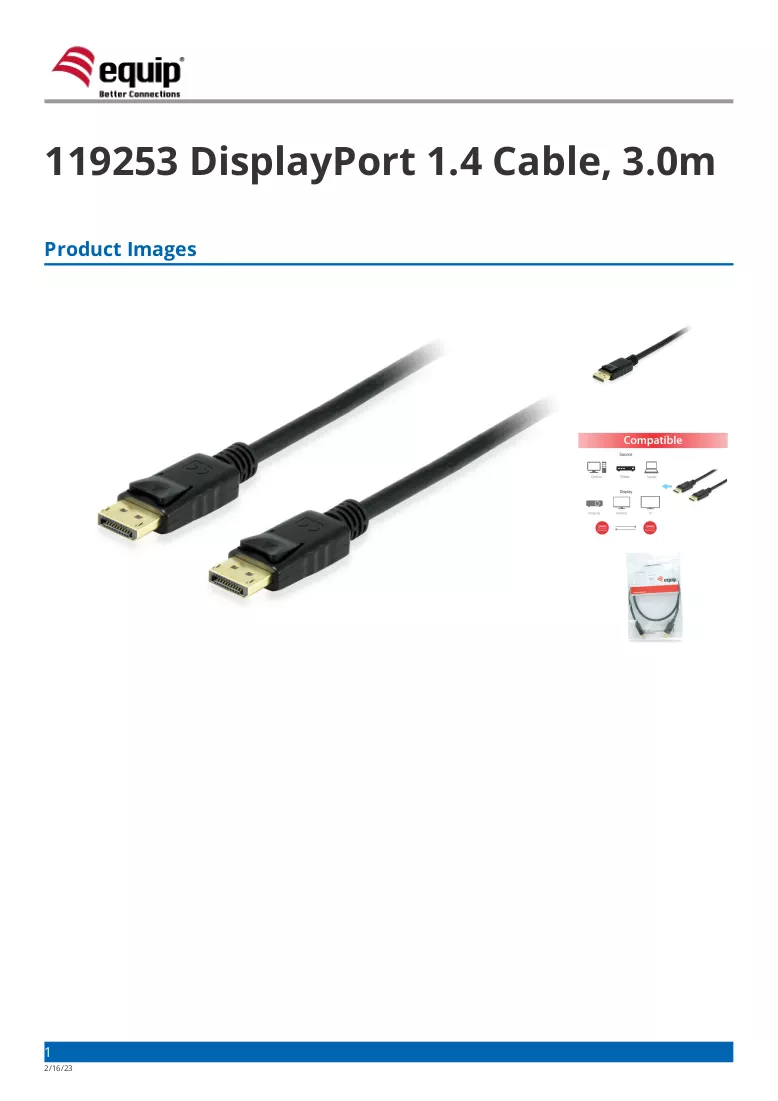

DisplayPort kabel Equip 119253 3 m

The Equip DisplayPort Cable (119253) is a 3 m digital audio and video cable with DisplayPort connectors on both ends. It is designed for connecting a computer to a monitor or to a home-theater system and supports DisplayPort 1.4 features. The cable supports high-resolution displays and complies with CE and RoHS standards.

Advantages

This DisplayPort cable supports a maximum bandwidth of 32.4 Gbps, enabling display of content up to 8K Ultra HD (7680 x 4320 @ 60 Hz). The 3 m length provides extended reach between devices, while the lightweight black design (approx. 172 g) makes it easy to handle and install. Dual DisplayPort connectors ensure a direct digital connection suitable for modern monitors and graphics cards.

Suitable for

• Connecting a PC or laptop to a DisplayPort-enabled monitor
• Connecting a computer to a home-theater AVR or display that accepts DisplayPort
• High-resolution video editing and CAD workstations requiring up to 8K output

Key specifications

• Brand: EQUIP
• Model / MPN: 119253
• Length: 3 m
• Connectors: DisplayPort — DisplayPort
• Standard: DisplayPort 1.4, bandwidth up to 32.4 Gbps
• Maximum supported resolution: up to 8K Ultra HD (7680 x 4320 @ 60 Hz)
• Weight: 0.172 kg
• Colour: Black
• Compliance: CE, RoHS

How to use

Plug one DisplayPort connector into the DisplayPort output on your computer or graphics card and the other connector into the DisplayPort input on your monitor or AV device. Ensure connectors are fully inserted and secure. Configure the display resolution and refresh rate in your operating system or graphics driver to match the capabilities of the monitor and cable (for example, up to 8K @ 60 Hz when supported by source and display).

Recommendations

Use this DisplayPort 1.4 cable for direct digital connections between compatible devices. For optimal results, verify that both source and display support the desired resolution and refresh rate. Avoid sharp bends or excessive tension on the cable to maintain signal integrity.
