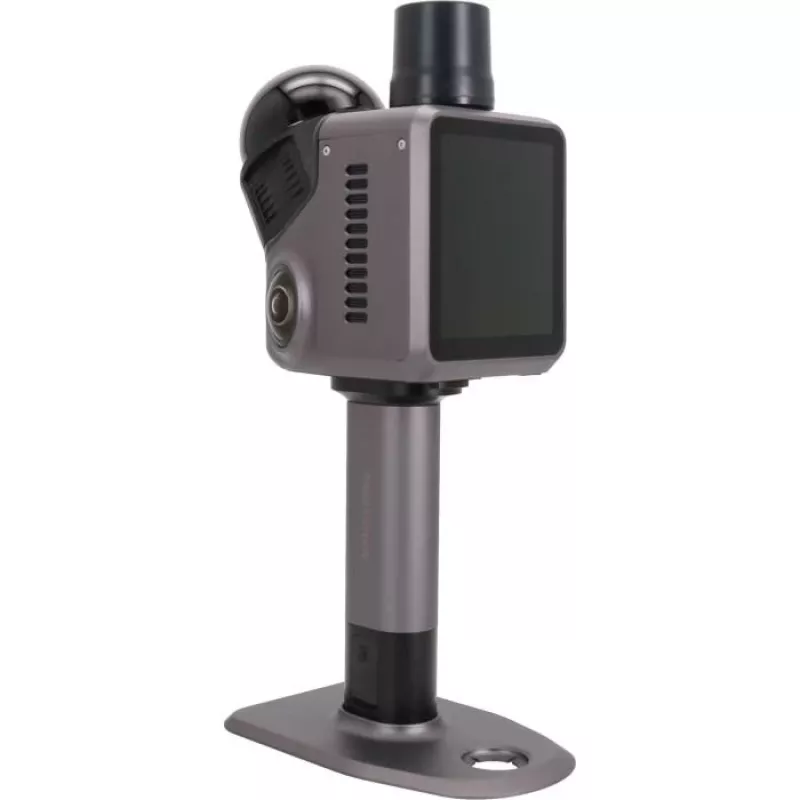

3D skener HAWK 3D SPACE 3DMAKERPRO (1300100241)

The HAWK 3D SPACE scanner by 3DMAKERPRO stands out with its near-infrared technology, delivering high-precision scans at up to 0.02 mm accuracy. Unlike many handheld scanners that require markers for tracking, this model supports feature, marker, and hybrid tracking modes, offering flexibility for a wide range of objects.

Highlights

• Near-infrared scanning technology
• Accuracy up to 0.02 mm
• Scanning speed of 1,500,000 points/s
• Single capture range of 220 x 140 mm
• Working distance from 150 to 400 mm
• Supports OBJ, STL, PLY, ASC output formats
• Compatible with Windows, macOS, and Android

In daily use

The HAWK 3D SPACE is a portable handheld scanner that connects via USB 2.0 and runs on JMStudio software. It is suitable for scanning objects as small as 10 x 10 x 10 mm, with no upper size limit. Color scanning is possible with an optional color kit.

Full specifications

• Scanning Technology: Near-infrared (NIR)
• Accuracy: Up to 0.02 mm
• Resolution: 0.05 mm
• Scanning Speed: 1,500,000 points/s
• Single Capture Range: 220 x 140 mm
• Working Distance: 150 - 400 mm
• Frame Rate: 10 fps
• Output Formats: OBJ, STL, PLY, ASC
• Connectivity: USB 2.0
• Compatible Operating Systems: Windows 10/11 (64-bit), macOS, Android
• Color Scanning: Yes (with optional color kit)
• Tracking Modes: Feature, Marker, Hybrid
• Software: JMStudio
• Power Input: 12V/1A
• Minimum Scan Object Size: 10 x 10 x 10 mm
• Maximum Scan Object Size: Unlimited (Handheld)

Final note

The HAWK 3D SPACE is a versatile tool for professionals needing precise 3D capture on the go.
