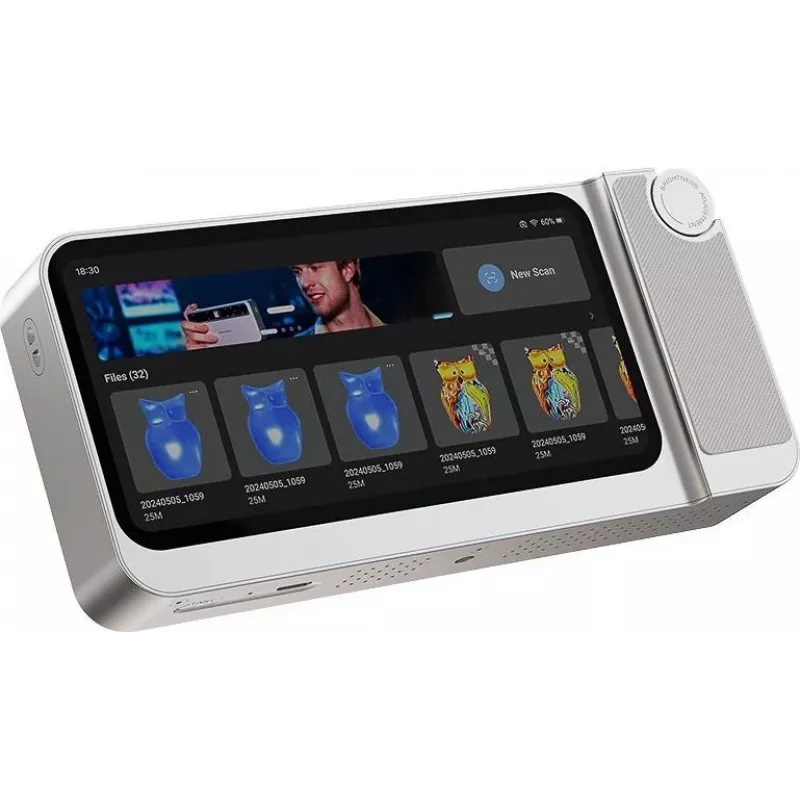

3D skener 3DMAKERPRO Toucan Standard Version 1300100246

Capture small to medium objects with the 3DMAKERPRO Toucan Standard Version 3D Scanner. This handheld scanner is ideal for reverse engineering, quality inspection, and digital archiving in workshops, design studios, and educational settings. With a scan accuracy of 0.1 mm and a resolution of 0.1 mm, it delivers precise digital replicas. The scanner features a white LED light source and supports color scanning with texture mapping (Color Kit optional). It connects via USB Type-C and is compatible with Windows 10/11 (64-bit) and macOS 12/13 using the included JMStudio software. Output formats include OBJ, STL, and PLY.

Key specifications

• Scan accuracy: 0.1 mm
• Resolution: 0.1 mm
• Scan speed: 10 fps
• Single capture range: 150 x 100 mm
• Working distance: 150 - 400 mm
• Light source: White LED
• Color scanning: Yes (texture mapping, Color Kit optional)
• Output formats: OBJ, STL, PLY
• Connectivity: USB Type-C
• Compatible OS: Windows 10/11 (64-bit), macOS 12/13
• Included software: JMStudio
• Minimum scan volume: 15 x 15 x 15 mm
• Data acquisition rate: 1,000,000 points/second
• Interface: USB 2.0
• Calibration: Manual (with calibration board)
• Power input: 5V/1A (via USB)
• Scanning modes: Handheld, Turntable (with optional accessories)

Why choose it

The Toucan Standard Version offers high precision and ease of use, making it suitable for both professionals and hobbyists. Its compact design and USB connectivity allow for flexible scanning setups.

Ideal use cases

• Reverse engineering of small mechanical parts
• Quality control and dimensional inspection
• Digital archiving of cultural artifacts
• Custom fit design in prosthetics and wearables

Good to know

The scanner requires manual calibration using the included calibration board. For automated scanning, optional turntable accessories are available. The Color Kit is optional for capturing full-color textures.
