Vnitřní hloubkový profil Eldon nVent 400 DIP400

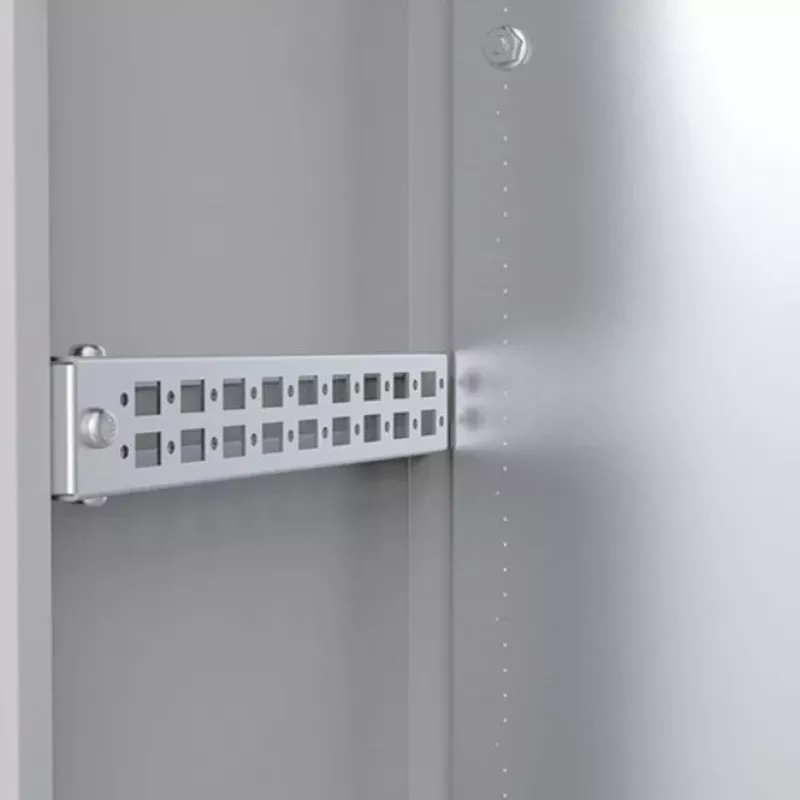

Internal depth profiles are essential for mounting equipment inside enclosures, but fixed mounting points often limit flexibility and make installation difficult. The Eldon nVent Internal Depth Profile 400 DIP400 solves this by providing an adjustable mounting solution for 400 mm deep enclosures.

Who is it for

This profile is intended for professionals building industrial control panels, electrical distribution systems, and data communication enclosures. It is compatible with nVent Eldon enclosure series such as MAS, MCS, and EK, and is ideal for installers who need to position mounting plates, chassis, or equipment at variable depths.

Main features

• Adjustable depth mounting for flexible equipment positioning
• C-profile shape for secure attachment
• Zinc-plated steel construction for corrosion resistance
• Screw-fixed to enclosure frame for stable installation
• Compatible with 400 mm deep nVent Eldon enclosures

Specifications

• Product type: Internal Depth Profile
• Intended enclosure depth: 400 mm
• Material: Steel
• Surface treatment: Zinc plated
• Mounting type: Adjustable depth mounting
• Profile shape: C-profile
• Quantity: 1 piece

Tips

When installing, ensure the profile is aligned with the enclosure frame and tightened securely to maintain stability. For best results, use with compatible nVent Eldon mounting accessories.
