TRYTYT PC-232 páčková spojka 2pólová 0,2-4,0mm² 50 ks

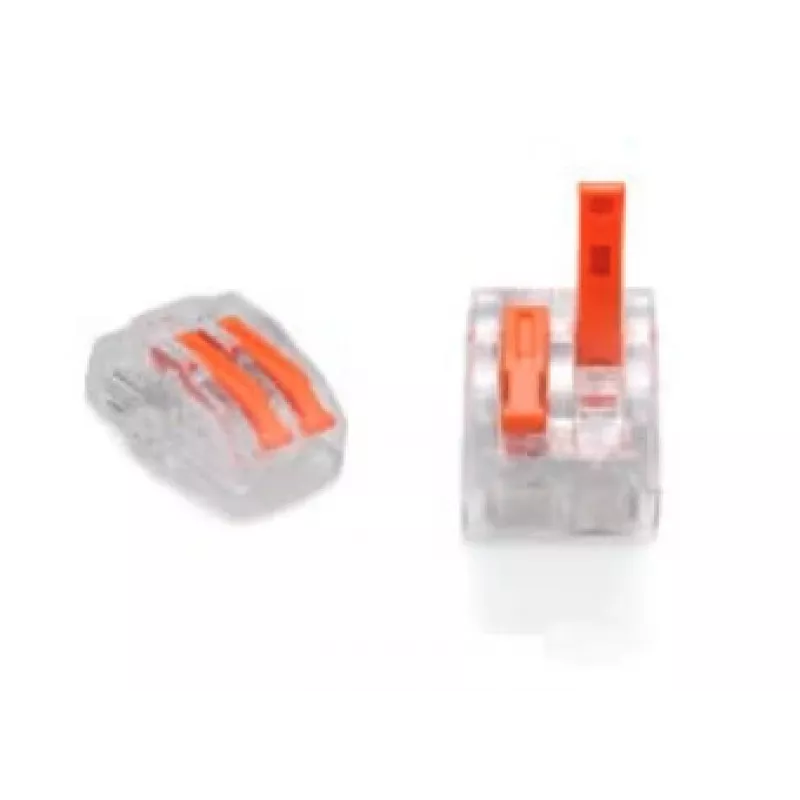

The TRYTYT PC-232 lever splicing connector is a reliable and quick wire connection solution for solid, stranded, and fine-stranded conductors. With a 2-pole design and a wire cross-section range of 0.2-4.0 mm² (AWG 24-12), it is ideal for junction boxes, lighting, HVAC, automotive, and industrial control applications. The transparent housing and orange levers allow for easy visual inspection of the connection. Each pack contains 50 pieces.

Advantages

Tool-free installation with lever action saves time and effort. Reusable and secure connection for maintenance flexibility. Compact design fits in tight spaces. High current rating of 32A and voltage rating of 400V/450V AC ensure reliable performance. Wide operating temperature range from -40°C to +105°C.

Suitable for

• Junction boxes and distribution boards
• Lighting installations
• HVAC systems
• Automotive wiring
• Industrial control panels

Key specifications

• Connector Type: Lever Splicing Connector
• Number of Poles: 2-Pole (2-Way)
• Wire Cross-Section (Solid/Stranded): 0.2 - 4.0 mm² (AWG 24-12)
• Wire Cross-Section (Fine-Stranded): 0.14 - 4.0 mm² (AWG 24-12)
• Rated Voltage: 400V / 450V AC
• Rated Current: 32A
• Insulation Material: PC (Polycarbonate)
• Contact Material: Copper (Tin-plated)
• Operating Temperature: -40°C to +105°C
• Stripping Length: 9 - 10 mm
• Flammability Rating: UL94 V-2
• Color: Transparent Housing, Orange Levers
• Quantity per Pack: 50 pieces
• Certifications: CE, RoHS

Recommendations

For best results, ensure proper stripping length of 9-10 mm and fully close the lever until it clicks. Suitable for indoor use only. Always verify compatibility with your wire gauge and application requirements.
