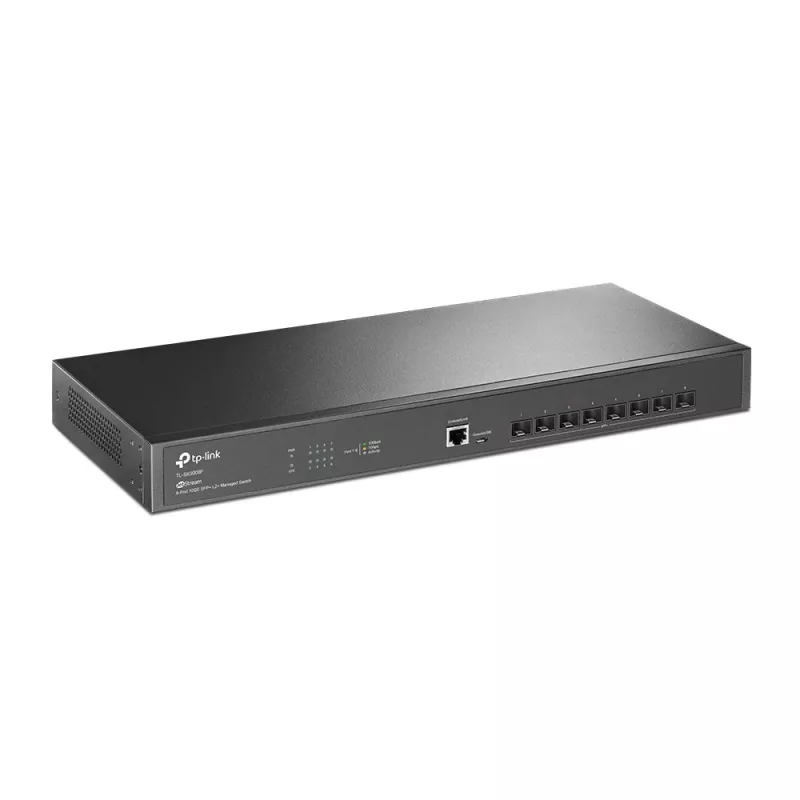

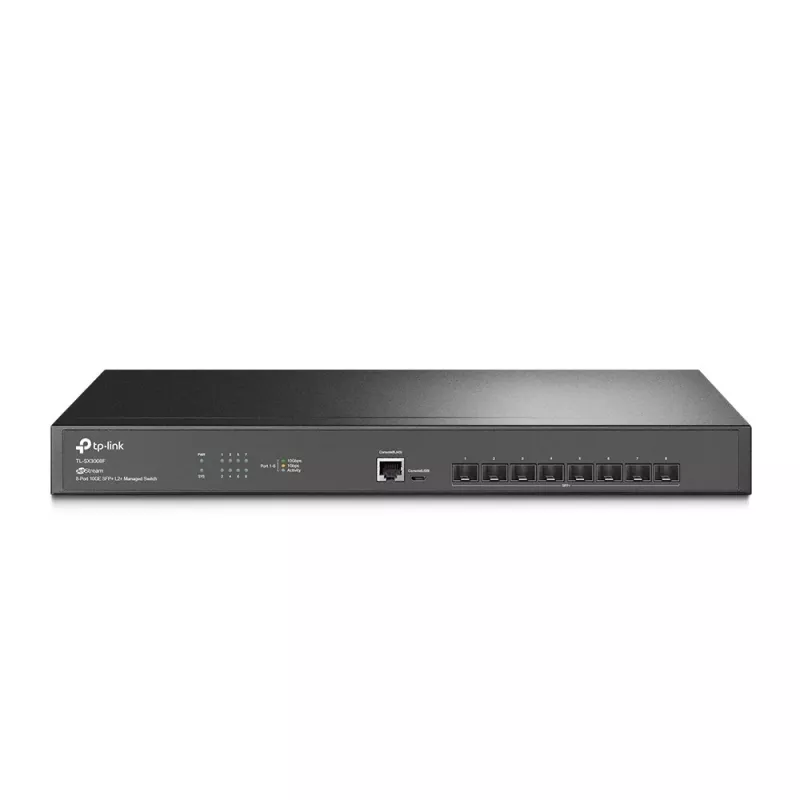

TP-Link JetStream TL-SX3008F síťový switch Managed L2/L3 černý

Bandwidth bottlenecks at the aggregation layer can cripple performance in modern data-driven environments. The TP-Link JetStream TL-SX3008F eliminates these bottlenecks by delivering eight 10-Gigabit SFP+ ports in a compact, fanless 1U form factor, enabling high-speed fiber connectivity for servers, NAS devices, and uplinks without noise or heat concerns.

Who is it for

This switch is ideal for small and medium businesses, enterprise branch offices, and advanced home labs that require high-speed fiber aggregation, low-latency switching, and robust Layer 2+/Layer 3 features in a silent, rack-mountable chassis.

Main features

• 8× 10G SFP+ ports for ultra-fast fiber uplinks and server connections
• 160 Gbps switching capacity and 119.04 Mpps forwarding rate for wire-speed performance
• Comprehensive L2+ features: VLANs, QoS, link aggregation, IGMP snooping, and more
• Static routing, RIP, OSPF, VRRP, and DHCP server/relay for L3 functionality
• Fanless design for silent operation in noise-sensitive environments
• Dual image and centralized management via Omada SDN controller, web GUI, or CLI

Specifications

• Ports: 8× 10G SFP+
• Switching capacity: 160 Gbps
• Packet forwarding rate: 119.04 Mpps
• MAC address table: 32K entries
• Jumbo frame: 9 KB
• VLANs: up to 4K (802.1Q, MAC-based, protocol-based, GVRP)
• QoS: 8 queues, 802.1p/DSCP, SP/WRR/SP+WRR
• Security: IP-MAC-Port binding, ARP inspection, DoS defense, DHCP snooping, 802.1X, RADIUS, TACACS+, SSL/SSH
• Management: Web GUI, CLI (console/telnet/SSH), SNMP v1/v2c/v3, RMON, Dual Image, Omada SDN Controller
• Layer 3: Static routing (IPv4/IPv6), RIP v1/v2, OSPF v2/v3, ECMP, VRRP, DHCP server/relay

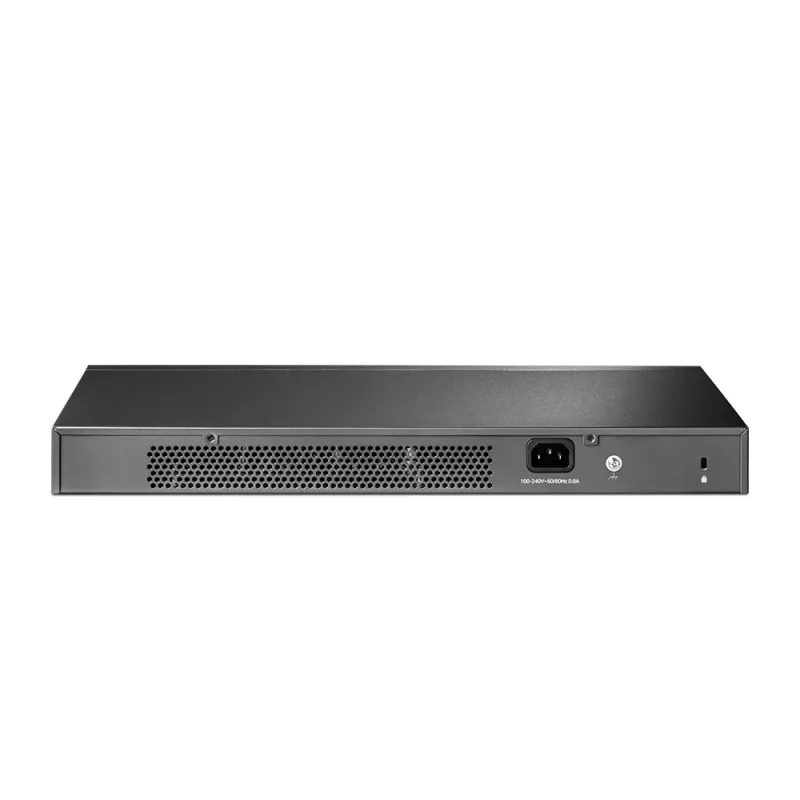

• Power supply: 100-240 V AC, 50/60 Hz
• Mounting: Rack-mountable (1U)
• Fan: Fanless
• Operating temperature: 0–50 °C (32–122 °F)
• IGMP snooping: V1/V2/V3
• Link aggregation: LACP, static

Tips

For optimal performance, use high-quality SFP+ transceivers or DAC cables that match your fiber type and distance requirements. The fanless design makes this switch perfect for quiet office environments or open rack setups.
