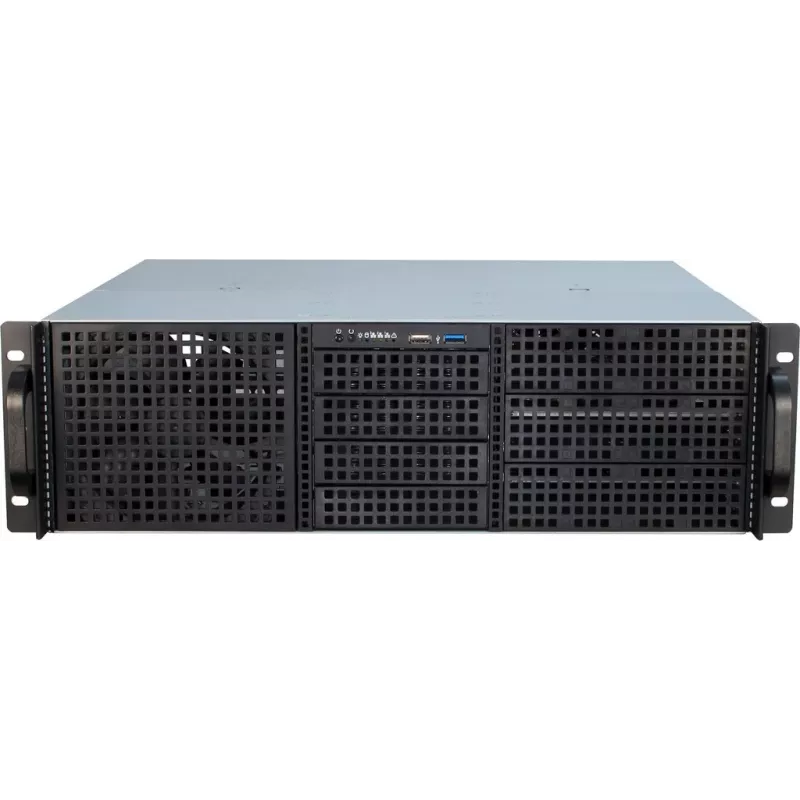

Serverová skříň Inter-Tech 3U-30240 Rack černá

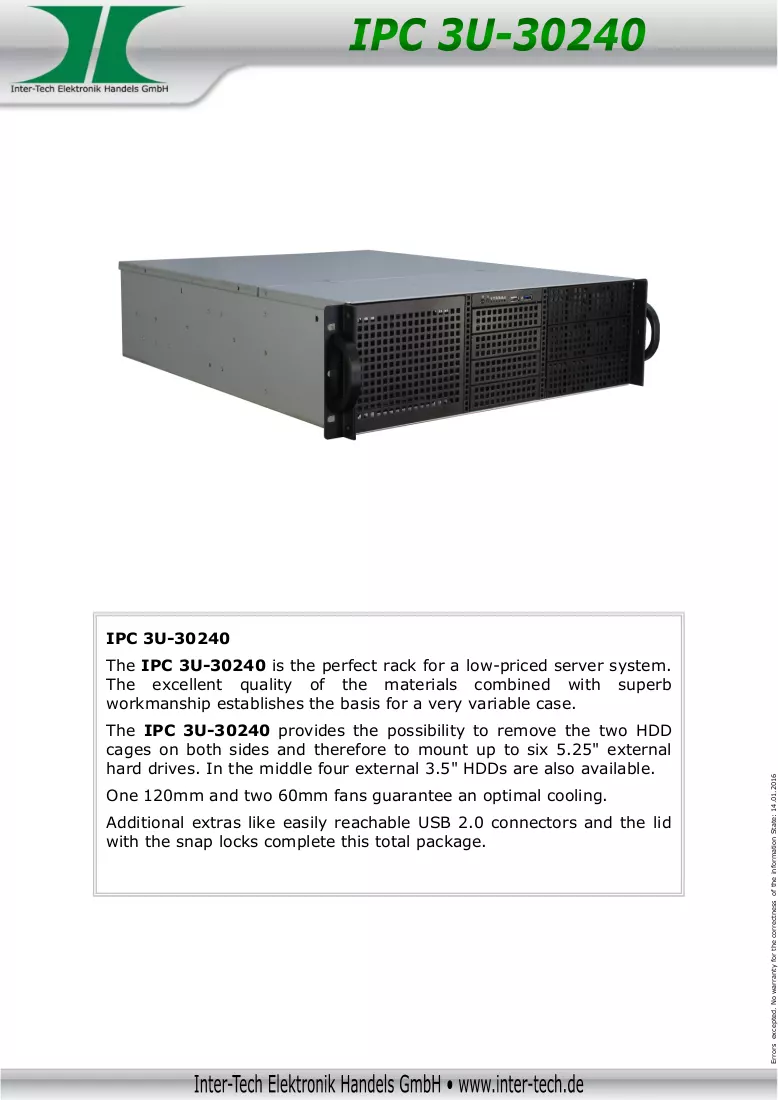

The IPC 3U-30240 rack chassis is designed for cost-effective server systems, built from quality materials with precise workmanship to provide a versatile enclosure. It supports flexible drive configurations and includes front I/O and integrated cooling to suit compact server deployments.

Advantages

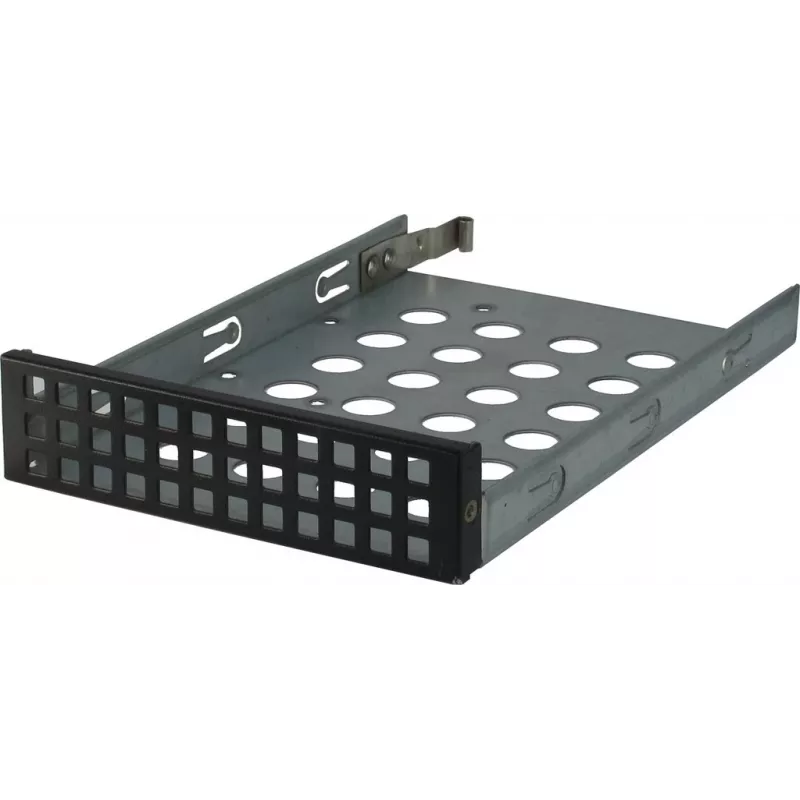

The chassis allows removal of two HDD cages to install up to six external 5.25" drives while offering four external 3.5" drive bays in the center. It includes one 120 mm and two 60 mm fans for effective airflow. Front-mounted, easily accessible USB 3.0 and USB 2.0 connectors and a lid with snap locks simplify maintenance and access.

Key specifications

• Form factor: 3U rack chassis
• External 5.25" drive support: up to 6 (with HDD cages removed)
• External 3.5" drive bays: 4 (center)
• Cooling: 1 × 120 mm fan, 2 × 60 mm fans
• Front I/O: USB 3.0 and USB 2.0 connectors
• Lid: snap-lock type

How to use

Install the chassis in a standard 19" rack and secure it according to rack-mounting instructions. Remove the two side HDD cages if required to fit up to six 5.25" external drives. Mount motherboards, power supplies and internal components in accordance with manufacturer guidelines. Connect the included fans to the system fan headers or power source to ensure proper cooling. Use the front USB 3.0 and USB 2.0 ports for convenient external device connections. Close the lid using the snap locks for secure access control.

Recommendations

For optimal operation, verify compatibility of drive heights and power supply clearance before installation. Maintain regular airflow by ensuring fan vents are unobstructed and consider adding dust filters if operating in dusty environments.
