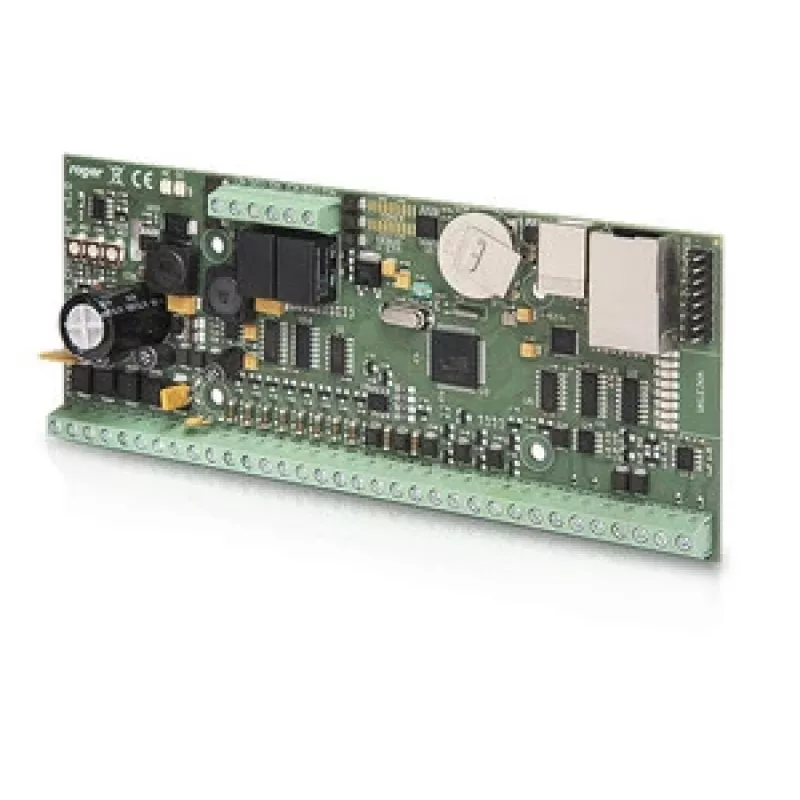

ROGER MC16-HRC-3 Hotel Access Controller

The ROGER MC16-HRC-3 is a dedicated hotel access controller designed for seamless integration with the ROGER RACS 5 system. It provides advanced access management for hotel rooms, supporting check-in/check-out, room status monitoring, energy saving, and PMS integration. The controller features 2 reader interfaces (Wiegand/DALLAS/ROGER), Ethernet and RS485 communication, and can control up to 2 doors. With a capacity of 250,000 users and 1,000,000 event logs, it is ideal for medium to large hotel properties.

Advantages

Reliable and scalable access control solution tailored for the hospitality industry. Easy integration with Property Management Systems (PMS) for automated check-in/check-out. Energy saving features help reduce operational costs. Real-time clock with battery backup ensures accurate event logging. Firmware updates via Ethernet for easy maintenance.

Suitable for

• Hotel access control systems
• Resort and hospitality properties
• Student dormitories and serviced apartments
• Any facility requiring secure room access with PMS integration

Key specifications

• System Compatibility: ROGER RACS 5
• Number of Doors Controlled: 1 (with in/out readers) or 2 (with single readers)
• Reader Interfaces: 2 x Wiegand/DALLAS/ROGER
• Communication: Ethernet (TCP/IP), RS485
• Power Supply: 12V DC
• Max Current Consumption: 200 mA (controller only)
• Inputs: 8 programmable
• Outputs: 4 x Relay (NO/NC), 4 x OC
• User Capacity: 250,000
• Event Log Capacity: 1,000,000
• Operating Temperature: -10°C to +50°C
• Operating Humidity: 10% to 95% (non-condensing)
• Enclosure Material: ABS Plastic
• Mounting: Wall Mount

Recommendations

For optimal performance, pair the MC16-HRC-3 with ROGER PRT series readers and ensure proper network connectivity. Regular firmware updates are recommended to maintain security and functionality.
