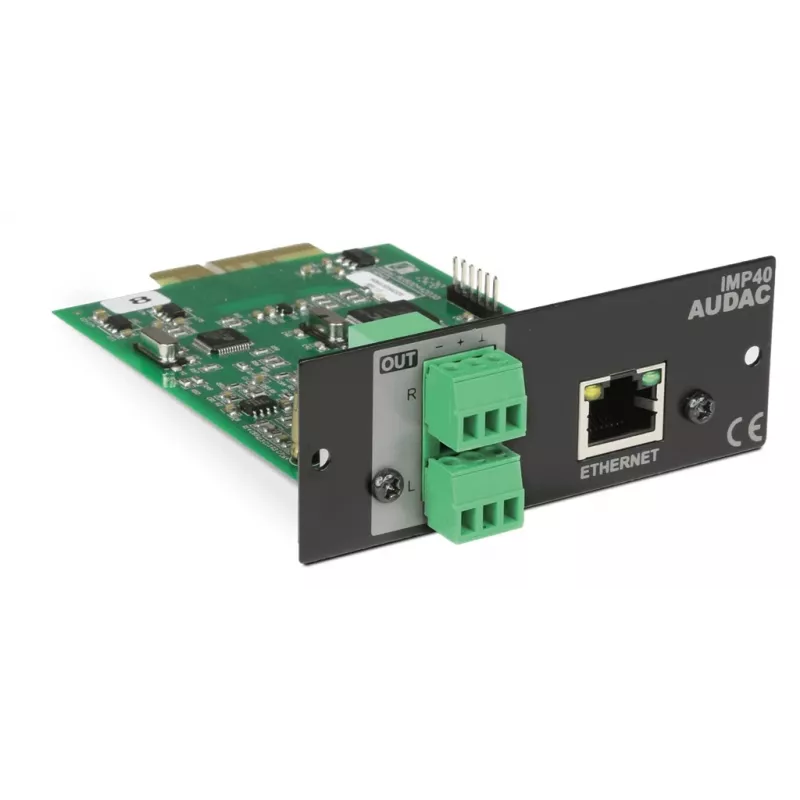

Modul internetového audio přehrávače AUDAC IMP40

The AUDAC IMP40 is a versatile internet audio player module designed for integration into AUDAC's XMP44/XMP44N modular systems. It enables streaming of internet radio, local playback from USB storage, and network audio via UPnP/DLNA, making it an ideal solution for commercial audio installations requiring reliable and high-quality audio streaming.

Advantages

Supports a wide range of audio formats including MP3, WMA, WAV, FLAC, OGG, AAC, and ALAC. Features both balanced (XLR) and unbalanced (RCA) outputs for flexible connectivity. Controlled via RS232 or TCP/IP API for seamless integration into automation systems. Low power consumption of only 5 W.

Suitable for

• Commercial audio systems in retail, hospitality, and corporate environments
• Background music and paging applications
• Integration with AUDAC XMP44/XMP44N modular platforms

Key specifications

• Audio Output Type: Stereo Line Out
• Balanced Outputs: 2x XLR
• Unbalanced Outputs: 2x RCA
• Network Connectivity: Ethernet (RJ45) 10/100 Mbps
• Supported Audio Formats: MP3, WMA, WAV, FLAC, OGG, AAC, ALAC
• Streaming Services: Internet Radio (vTuner, TuneIn)
• Local Playback: USB Storage, UPnP/DLNA
• Control Interface: RS232, TCP/IP API
• Frequency Response: 20 Hz - 20 kHz (±3 dB)
• THD+N: < 0.05%
• Signal-to-Noise Ratio: > 90 dB
• Max Balanced Output Level: +18 dBu
• Max Unbalanced Output Level: +6 dBu
• Power Supply: 24 V DC
• Power Consumption: 5 W
• Mounting: AUDAC XMP44/XMP44N Module Slot
• Operating Temperature: 0°C ~ 40°C

Recommendations

For optimal performance, pair the IMP40 with an AUDAC XMP44 or XMP44N chassis. Ensure network connectivity via a stable Ethernet connection for internet radio streaming.
