Modem Ropam MODEM LTE NEO-IP/-64 EXP-LTE

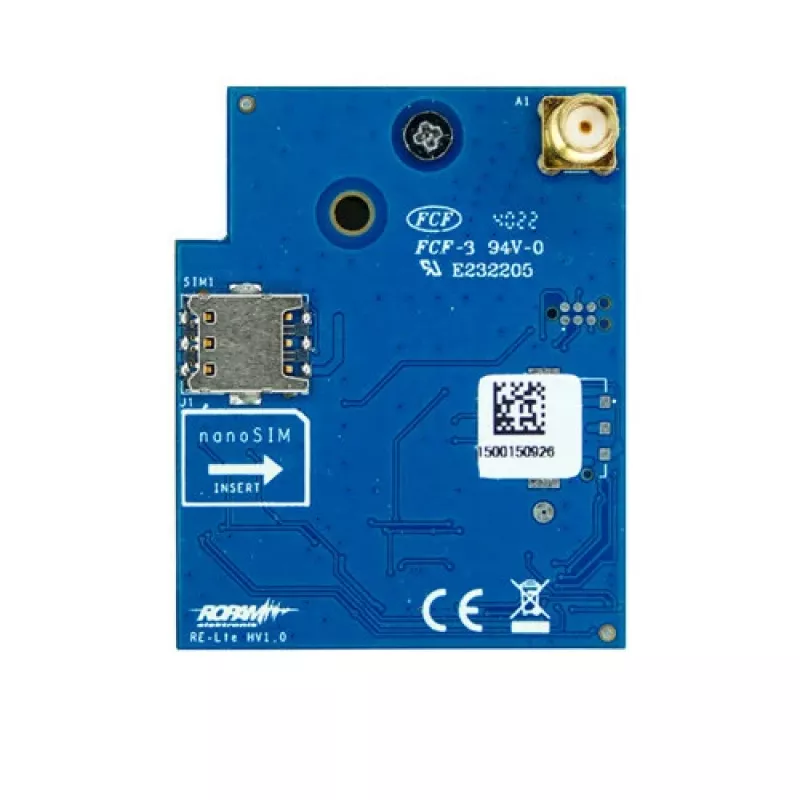

The Ropam MODEM LTE NEO-IP/-64 EXP-LTE is a high-performance LTE cellular communication module designed for seamless integration with Ropam NEO-IP-64 control panels. This plug-in module enables reliable remote monitoring and control via SMS, push notifications, email, or monitoring stations over TCP/IP. With support for 4G LTE (Cat.1), 3G, and 2G networks, it ensures robust connectivity even in areas with limited coverage. The module features a nano-SIM slot, SMA female antenna connector, and voice call capability (CLIP/DTMF). Firmware updates can be performed via USB, LAN, or LTE, ensuring future-proof operation.

Advantages

Easy plug-in installation directly into the control panel, eliminating the need for external power supplies. Multi-network fallback (LTE/3G/2G) guarantees uninterrupted communication. Remote management via the Ropam Bridge app and cloud service provides convenience and flexibility.

Suitable for

• Ropam NEO-IP-64 alarm control panels requiring cellular backup or primary communication
• Applications needing remote event reporting and control via SMS or app
• Installations where wired internet is unavailable or unreliable

Key specifications

• Communication Technology: LTE (4G), UMTS/HSPA+ (3G), GPRS/EDGE (2G)
• Compatibility: Ropam NEO-IP-64 Control Panels
• SIM Card Type: Nano-SIM
• Antenna Connector: SMA Female
• Remote Control Methods: SMS, Ropam Bridge App
• Event Reporting: SMS, PUSH Notifications, E-mail, Monitoring Stations (TCP/IP)
• Voice Call Support: Yes (CLIP/DTMF)
• Data Protocols: TCP/IP, UDP, MQTT
• Firmware Update: Via USB, LAN, or LTE
• Power Supply: From host control panel
• Operating Temperature: -10°C to +55°C
• Max Current Consumption: 200 mA (during transmission)
• Mounting Type: Plug-in module (internal)
• LTE Category: Cat.1
• LTE FDD Bands: B1, B3, B7, B8, B20, B28
• LTE TDD Bands: B38, B40, B41
• Supported Services: Ropam Bridge Cloud Service

Recommendations

For optimal performance, use a high-quality LTE antenna with SMA connector. Ensure the control panel firmware is up-to-date before installation. The module is designed for indoor use within the specified temperature range.
