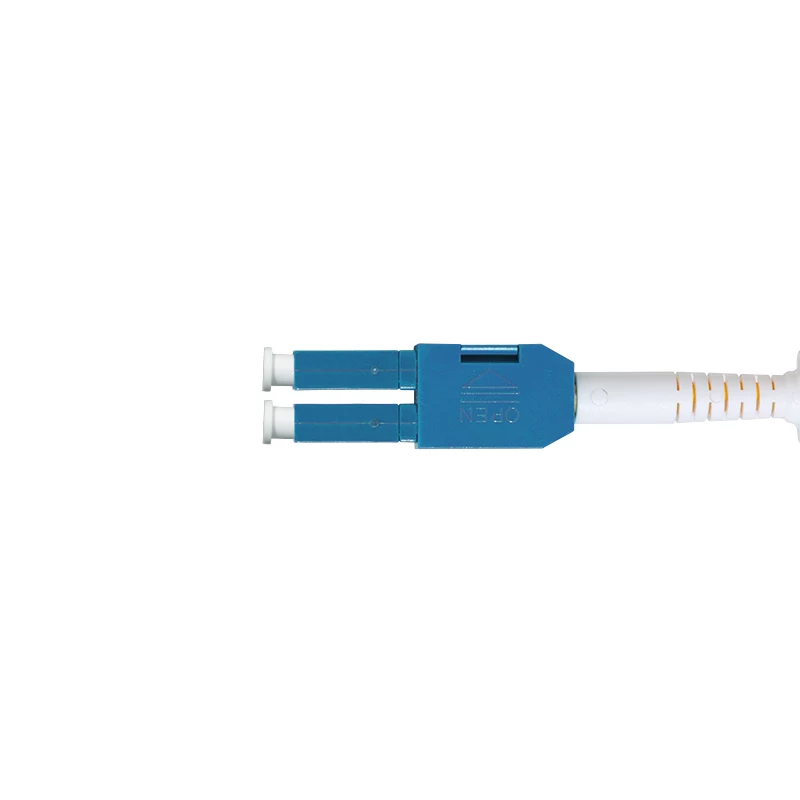

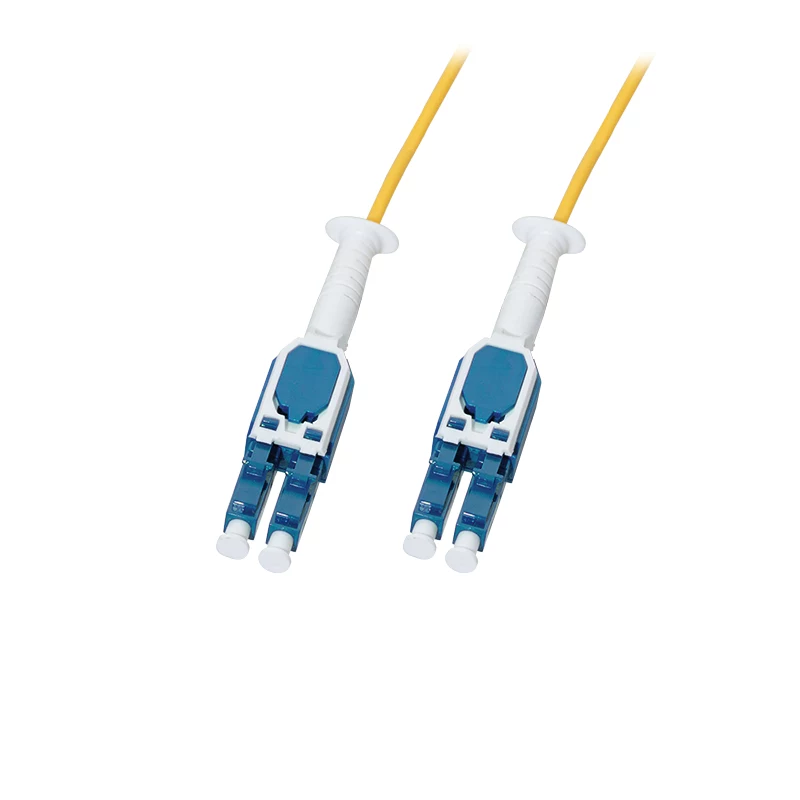

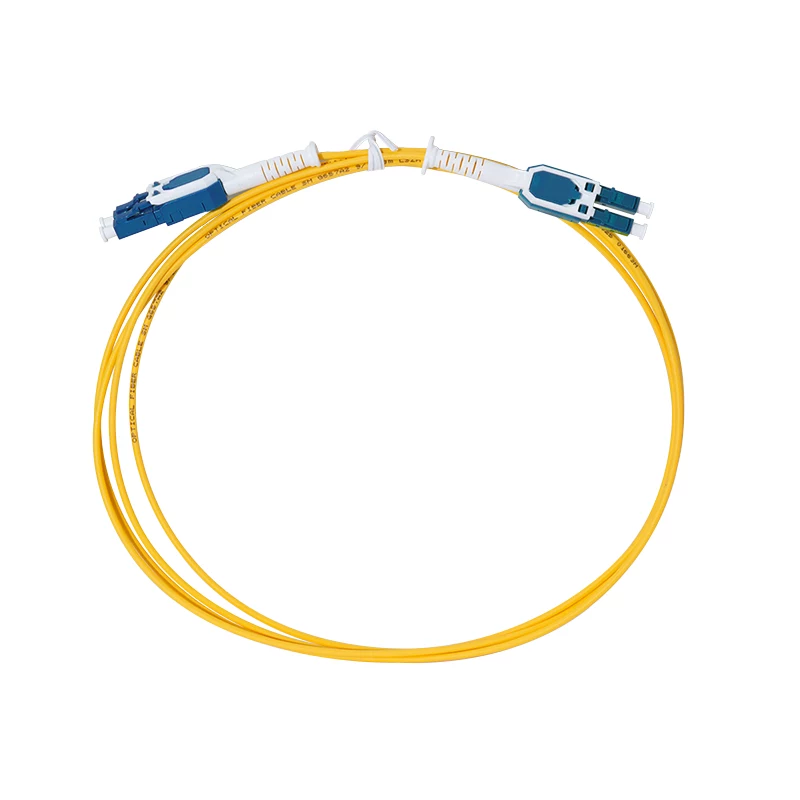

LogiLink Uniboot Push-Pull optický patch kabel LC-LC OS2, 1,0 m

In a high-density data center, every millimeter of rack space counts. The LogiLink Uniboot Push-Pull Fiber Patch Cord LC-LC OS2, 1.0 m, streamlines your fiber infrastructure with a single-boot design that combines both fibers into one compact connector. Network administrators and data center technicians can now manage dense patch panels without the clutter of traditional duplex cables, thanks to the innovative push-pull tab that allows one-handed insertion and removal even in tight spaces.

Key specifications

• Fiber type: Single-mode OS2, 9/125 µm
• Connectors: LC/UPC to LC/UPC, duplex uniboot
• Length: 1.0 m
• Insertion loss: ≤ 0.2 dB
• Return loss: ≥ 50 dB
• Jacket: LSZH, yellow
• Cable diameter: 3.0 mm
• Polarity: A-B (crossed)
• Operating temperature: -20°C to +70°C
• Standards: IEC 61754-20, TIA/EIA-604-10, RoHS, REACH

Why choose it

The uniboot design reduces cable bulk by 50% compared to standard duplex patch cords, improving airflow and simplifying cable management. The push-pull tab eliminates the need for a connector clip, enabling easy access in high-density environments. The LSZH jacket ensures low smoke and zero halogen emissions, making it safe for enclosed spaces. With low insertion loss and high return loss, this patch cord delivers reliable performance for today's high-speed networks.

Ideal use cases

• Data center interconnects between switches, servers, and patch panels
• Telecommunications rooms and backbone cabling
• Enterprise LAN and SAN environments
• High-density fiber distribution frames (ODFs)

Good to know

This patch cord is compliant with IEC 61754-20 and TIA/EIA-604-10 standards, ensuring compatibility with standard LC interfaces. The crossed polarity (A-B) is typical for duplex applications, and the single-mode OS2 fiber supports long-distance, high-bandwidth transmission.
