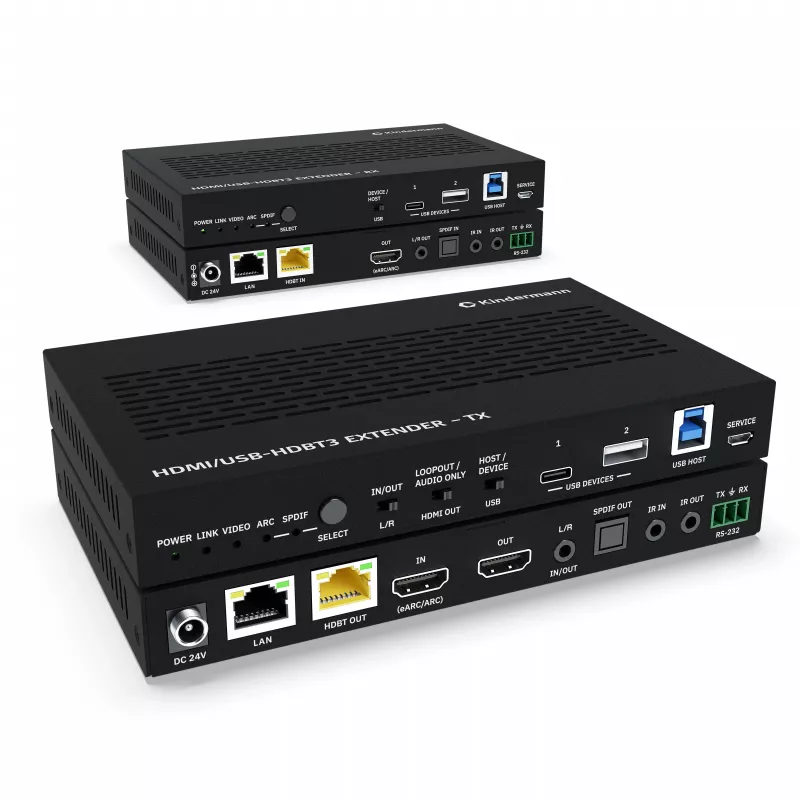

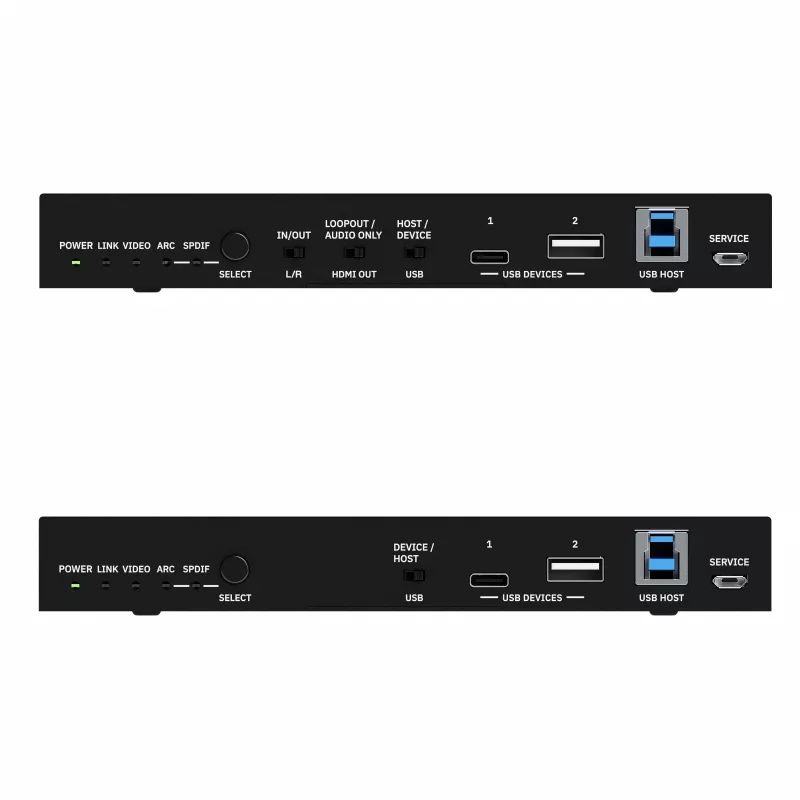

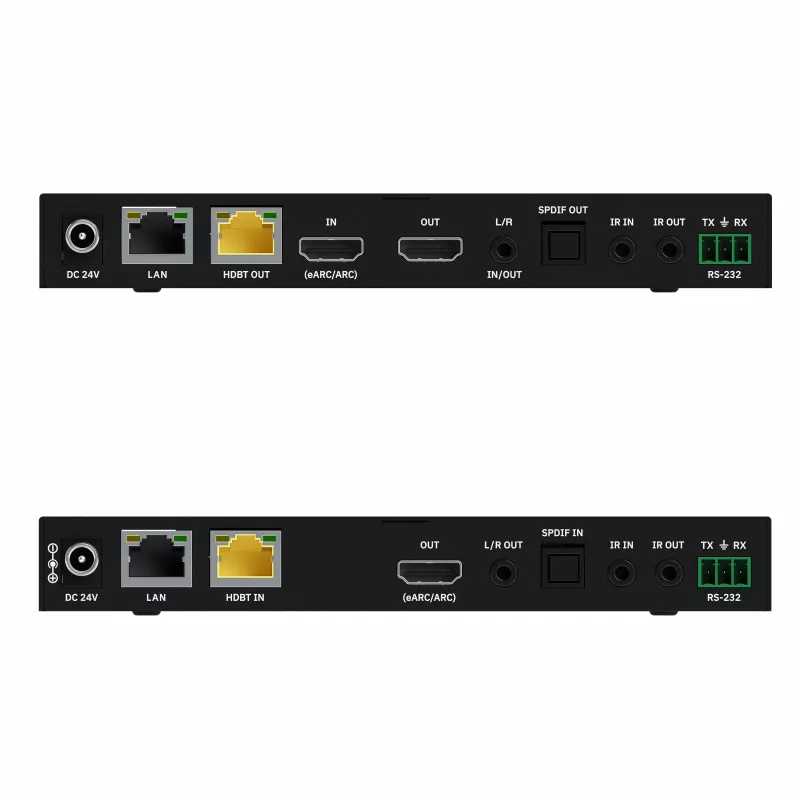

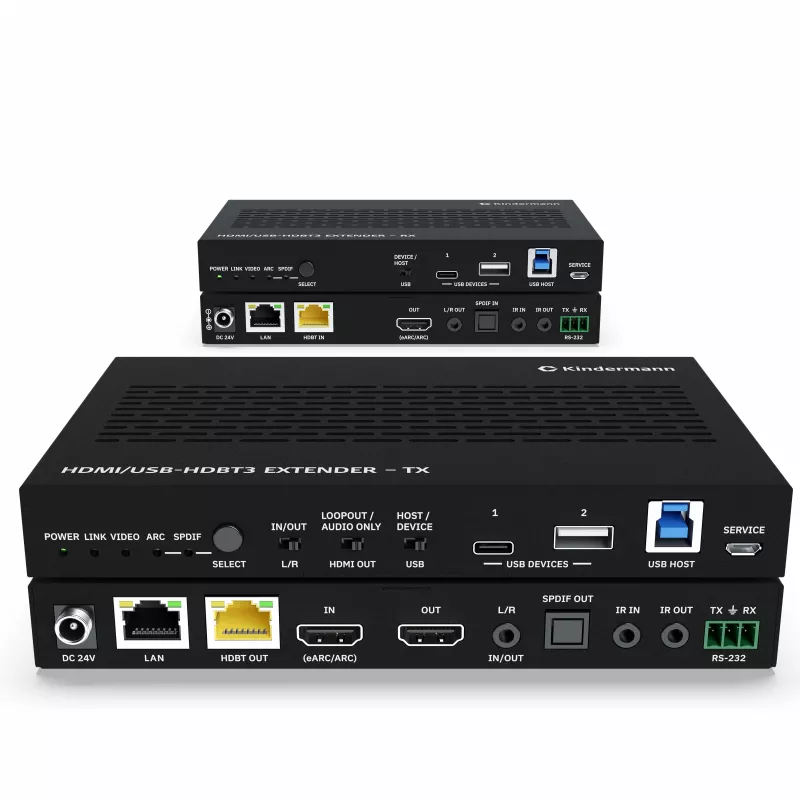

Kindermann HDMI/USB-HDBT3 Extender Set² (EHB100V3K)

The Kindermann HDMI/USB-HDBT3 Extender Set² (EHB100V3K) is a professional-grade HDBaseT 3.0 extender solution that transmits uncompressed 4K@60Hz 4:4:4 video, USB 2.0, Ethernet, IR, and RS232 signals up to 100 meters over a single CAT6a/CAT7 cable. This set includes one transmitter and one receiver, offering near-zero latency and Power over Cable (PoC) for simplified installation.

Advantages

This extender set delivers uncompressed 4K video with full chroma subsampling, ensuring pristine image quality for demanding applications. The integrated USB 2.0 extension allows seamless connection of peripherals such as keyboards, mice, or touchscreens at the receiver end. With bi-directional IR and RS232 pass-through, remote control and device management are effortless. Power over Cable eliminates the need for a local power supply at the receiver, reducing clutter and installation complexity.

Suitable for

• Digital signage and corporate AV installations
• Education and lecture hall systems
• Home theater and media room setups
• Conference rooms requiring USB peripheral extension
• Any application needing long-distance 4K signal distribution

Key specifications

• Extender Technology: HDBaseT 3.0
• Max Video Resolution: 4K@60Hz 4:4:4 (uncompressed)
• Max Extension Distance: 100 meters (330 ft) over CAT6a/CAT7
• HDMI Version: 2.0, Bandwidth: 18 Gbps
• HDCP Support: 2.3
• USB Version: 2.0 (480 Mbps); 1x USB-B (host) on TX, 2x USB-A (device) on RX
• Ethernet Pass-through: 1 Gbps
• Control: Bi-directional IR and RS232
• Audio: LPCM, DTS-HD Master Audio, Dolby TrueHD
• Power over Cable (PoC): Yes (TX powers RX)
• Chassis Material: Metal
• Mounting: Surface or rack-mountable (optional kit)
• Included: 1x Transmitter, 1x Receiver

Recommendations

For optimal performance, use high-quality CAT6a or CAT7 solid-core cables with shielded RJ45 connectors. Ensure the cable run does not exceed 100 meters. The extender is ideal for professional AV environments where uncompressed 4K and USB extension are required. Pair with Kindermann mounting accessories for rack integration.
