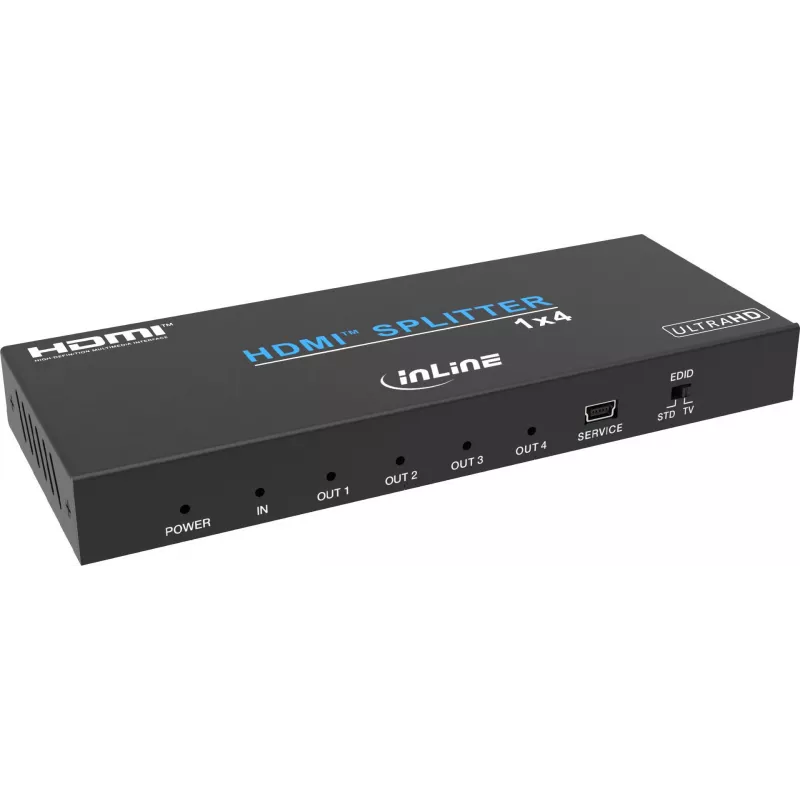

InLine® Video Splitter, 1x4, HDMI 4K/60Hz

Distribute one 4K Ultra HD HDMI signal to four displays simultaneously at full 60Hz refresh rate with this robust 1x4 HDMI splitter from InLine®. Supporting HDMI 2.0b and HDCP 2.2, it delivers crystal-clear 3840x2160 resolution, HDR10, and 18Gbps bandwidth for flawless video and audio.

Overview

The InLine® 57887A is a high-performance distribution amplifier that takes a single HDMI input and mirrors it to four outputs without signal degradation. Ideal for digital signage, conference rooms, retail displays, or home theatre setups, it ensures every connected screen shows identical content in stunning 4K quality. The metal housing provides durability and efficient heat dissipation, while the included power supply guarantees stable operation.

What stands out

• 4K Ultra HD at 60Hz with HDR10 and Deep Color for vibrant, lifelike images
• HDMI 2.0b and HDCP 2.2 compliance for compatibility with modern sources and displays
• 18Gbps bandwidth supports high-bitrate content without compression artifacts
• Automatic EDID management ensures optimal resolution and audio format negotiation
• Cascading support allows expanding to even more displays
• LED indicators for power and signal status simplify troubleshooting

Technical details

• Input: 1x HDMI Type A Female
• Outputs: 4x HDMI Type A Female
• Max Resolution: 4K Ultra HD (3840x2160) @ 60Hz
• HDMI Standard: HDMI 2.0b
• HDCP: 2.2 / 1.4
• Bandwidth: 18 Gbps
• Color Depth: 8/10/12-bit Deep Color
• HDR: HDR10
• Audio: DTS-HD, Dolby TrueHD, LPCM 7.1, DTS, Dolby-AC3, DSD
• EDID: Automatic / Copy
• Power: DC 5V/1A (adapter included)
• Housing: Metal (Aluminum alloy)
• Max Cable Length: 5m in/out (4K@60Hz, AWG26)
• Cascading: Yes
• LED Indicators: Power, Input, Output status
• Operating Temperature: 0°C to 40°C
• Compliance: CE, FCC, RoHS

Our verdict

The InLine® 57887A is a reliable and future-proof solution for splitting 4K HDMI signals. Its robust build, comprehensive feature set, and ease of use make it a top choice for professional AV installations.
