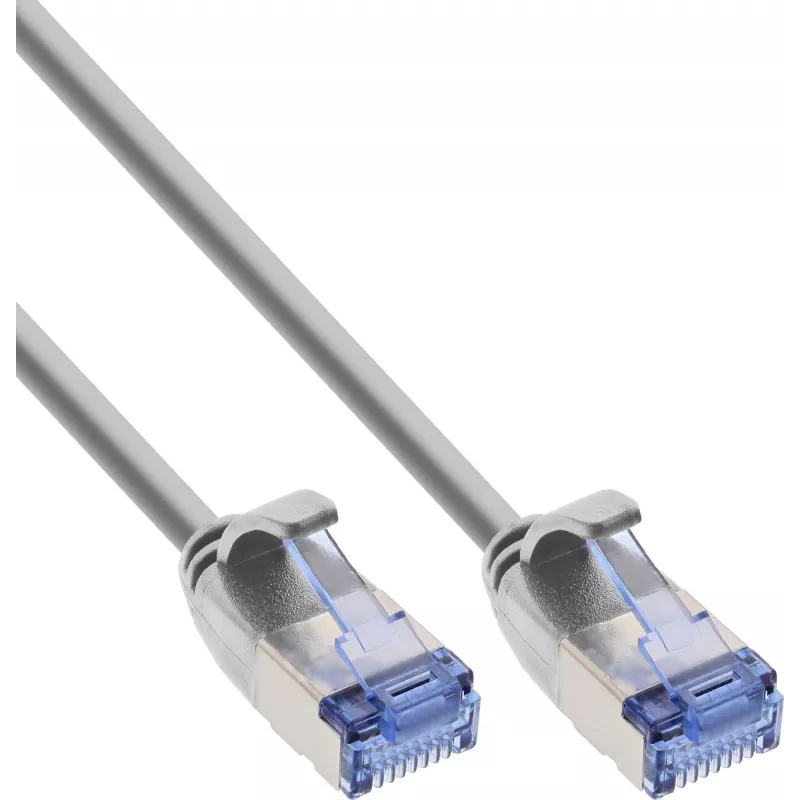

InLine® Slim patch kabel U/FTP PiMf Cat.6A šedý 7,5m

In modern high-density network environments, standard patch cables can create clutter, block airflow, and complicate cable management. The InLine® Slim Patch Cable U/FTP PiMf Cat.6A in grey solves these challenges with a slender 4.0 mm outer diameter that saves space in racks and patch panels while delivering 10 Gigabit Ethernet performance up to 500 MHz. Its U/FTP shielding with PiMf (pairs in metal foil) protects against alien crosstalk, ensuring reliable data transmission even in noisy installations.

Who is it for

This cable is ideal for IT professionals, data center managers, and network installers who need high-speed connectivity in space-constrained areas. It suits structured cabling in offices, server rooms, and industrial settings where Cat.6A performance and slim design are both required.

Main features

• Cat.6A performance with 10 Gbps data transfer rate and 500 MHz bandwidth
• U/FTP shielding with PiMf (pairs in metal foil) for excellent crosstalk immunity
• Slim 4.0 mm outer diameter for improved airflow and easier cable management
• Snagless boot protects the locking tab during installation and removal
• Gold-plated contacts for reliable connections and corrosion resistance
• LSZH (Low Smoke Zero Halogen) jacket for enhanced fire safety
• Backward compatible with Cat.6, Cat.5e, and Cat.5 networks

Specifications

• Length: 7.5 m
• Colour: Grey
• Connector 1: RJ45 Male
• Connector 2: RJ45 Male
• Conductor Material: Copper
• Conductor Type: Stranded
• Conductor Gauge: AWG 28/7
• Wiring Standard: TIA/EIA 568B
• Certifications: RoHS, CE

Tips

For best performance, avoid sharp bends and keep the cable away from sources of electromagnetic interference. Use the slim design to bundle multiple cables neatly with Velcro ties, and always test connections after installation to ensure full 10 Gbps throughput.
