InLine 64107I video kabel adaptér USB Type-C DisplayPort šedý

Bidirectional use:Flexible use as a USB-C to DisplayPort converter or DisplayPort to USB-C converter for maximum versatility.
Highest resolution & speed:Supports 8K@60Hz, backward compatible with 4K@240Hz, ideal for demanding applications and modern displays.
Wide device compatibility:Works with Thunderbolt 3/4, USB4, DP Alt Mode – can be used with notebooks, PCs, monitors, smartphones, and VR glasses.
Professional image and sound quality:HDR10, HDR400, HDR10+, and Dolby Vision ensure brilliant display in multimedia environments.
Easy integration:Plug-and-play without additional driver installation for fast, reliable use.

The InLine® USB Display Converter offers maximum flexibility thanks to its bidirectional function. It supports both the connection of devices with a USB-C interface (Thunderbolt 3/4, USB4, DP Alt Mode) to a monitor with a DisplayPort input and, conversely, the connection of a DisplayPort output to a USB-C display device.
Thanks to its support for DisplayPort 1.2 and 1.4, the converter enables resolutions up to 8K@60Hz and is backward compatible with 4K@240Hz, 4K@165Hz, 4K@144Hz, 4K@60Hz, 2K@240Hz, and 2K@144Hz. With HDR support (HDR10, HDR400, HDR10+, Dolby Vision) and technologies such as Adaptive Sync, FreeSync, and G-Sync, it is ideal for multimedia and gaming.
The maximum data rate of 32.4 Gb/s (DP 1.4 HBR3) ensures stable signal transmission. The plug-and-play function without driver installation makes the converter ideal for flexible workplaces and conference rooms.
With its high compatibility with MacBooks, Windows PCs, smartphones, monitors, and VR glasses, the InLine® USB Display Converter is a future-proof and universally applicable solution.

Supported DisplayPort versions: 1.2 / 1.4
USB-C compatibility: Thunderbolt 3/4, USB4, DP Alt Mode
Supported resolutions and refresh rates up to 8K@60Hz, backward compatible with 4K@240Hz, 4K@165Hz, 4K@144Hz, 4K@ 60Hz, 2K@240Hz, and 2K@144Hz
Color support: HDR10, HDR400, HDR10+, Dolby Vision
Data rate / bandwidth up to 32.4 Gb/s with DP 1.4 HBR3
Supports HDCP, Adaptive Sync / G-Sync / FreeSync
Compatible devices: MacBook, Windows PC, smartphones, monitors, VR glasses, etc.
Operating temperature: 0 to 40 °C
Storage temperature: -20 to 60 °C

Note:Please use a USB-C cable that complies with USB 3.2 specifications or better. The maximum cable length is 3 m. For resolutions of 8K@60Hz / 4K@120Hz and higher, the recommended length is a maximum of 2 m. The cable must comply with USB4/Thunderbolt 4 specifications or higher.

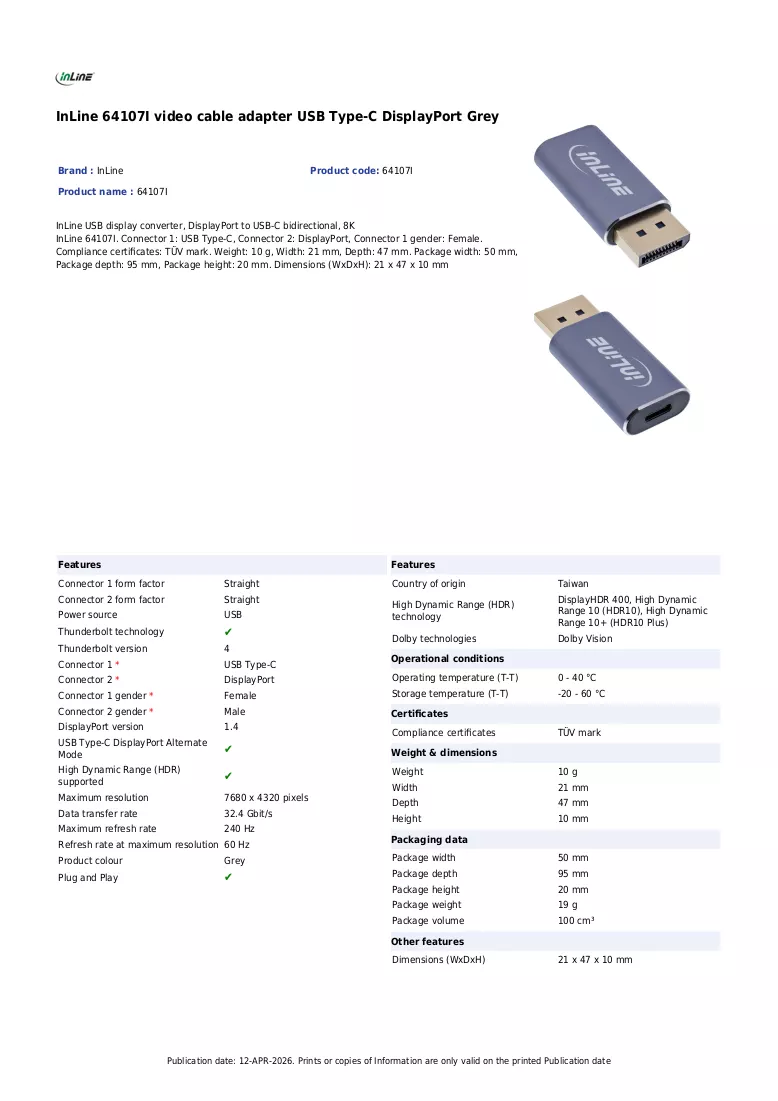

InLine 64107I. Connector 1: USB Type-C, Connector 2: DisplayPort, Connector 1 gender: Female. Compliance certificates: TÜV mark. Weight: 10 g, Width: 21 mm, Depth: 47 mm. Package width: 50 mm, Package depth: 95 mm, Package height: 20 mm. Dimensions (WxDxH): 21 x 47 x 10 mm

How to use

Connect the converter to a USB-C device or a DisplayPort source depending on the required direction. Use a USB-C cable that meets USB 3.2 specifications or better; for USB4/Thunderbolt 4 devices and the highest resolutions use a cable compliant with USB4/Thunderbolt 4. The maximum recommended cable length is 3 m; for 8K@60Hz or 4K@120Hz and higher, limit the cable length to 2 m for reliable signal transmission. The device is plug-and-play and normally does not require driver installation.

Recommendations

For best results at 8K@60Hz or high refresh-rate 4K modes, use a certified USB4 or Thunderbolt 4 cable no longer than 2 m and ensure connected devices support the required DisplayPort version and HDR/Adaptive Sync formats.
