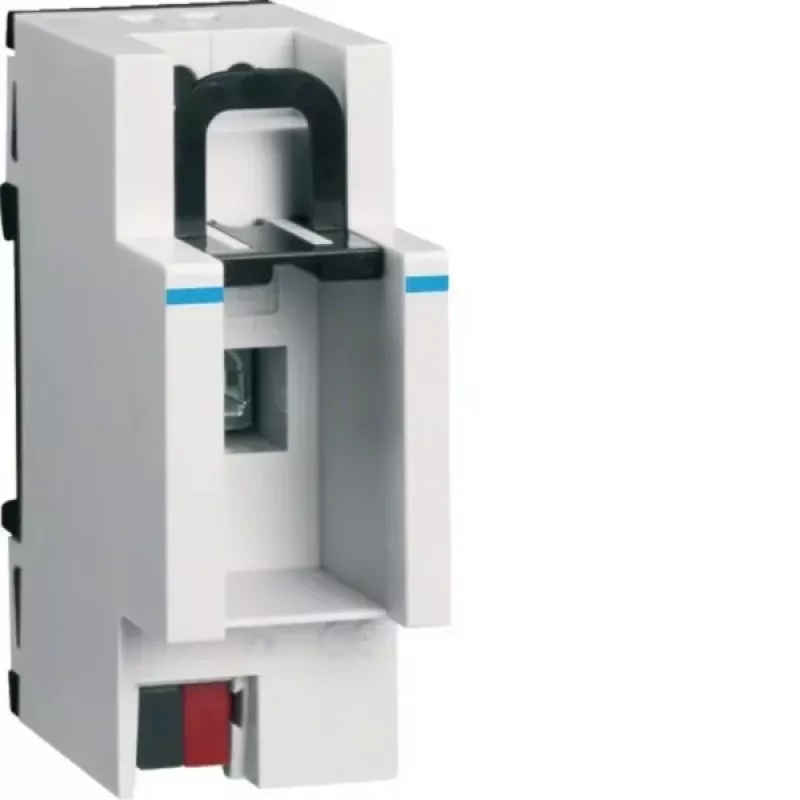

HAGER TYFS122 USB rozhraní KNX Secure REG

The HAGER TYFS122 USB Interface KNX Secure REG is a high-quality DIN rail-mounted interface for connecting a PC to a KNX bus system. It supports KNX Secure for encrypted communication, making it ideal for commissioning, diagnostics, and visualization in smart building installations.

Advantages

KNX Secure ensures safe data transmission. Compact 2 TE design fits easily in distribution boards. Powered directly from the KNX bus, no external power supply needed. Compatible with ETS5 and ETS6 for seamless integration.

Suitable for

• Professional KNX installers and system integrators
• Building automation projects requiring secure bus access
• Commissioning and maintenance of KNX installations

Key specifications

• Interface: KNX USB Interface
• KNX Protocol: KNX Secure
• Mounting: DIN Rail (REG), 2 TE
• PC Connection: USB Type B
• Power Supply: From KNX bus (21...30 V DC)
• Current Consumption: Max. 10 mA
• Operating Temperature: 0 to 45 °C
• Storage Temperature: -25 to 70 °C
• Protection Class: IP20
• Housing Material: Plastic, Light grey
• Certification: KNX certified

Recommendations

For optimal performance, use with ETS5 or ETS6 software. Ensure KNX bus voltage is within specified range. The interface is suitable for permanent installation in distribution boards.
