ENGO Controls E30NC-230 termoelektrický pohon

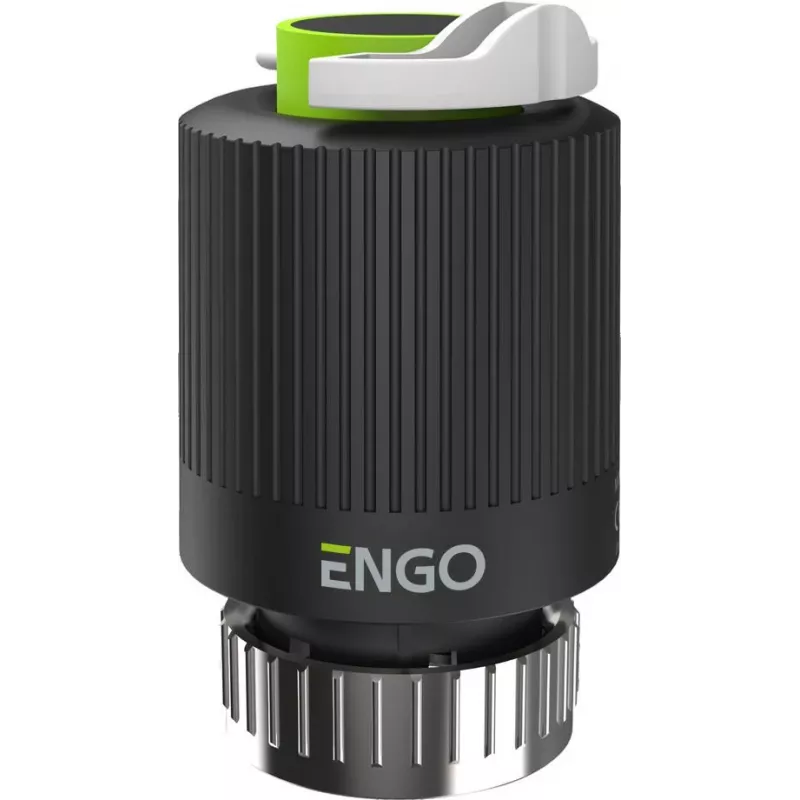

The ENGO Controls E30NC-230 is a high-quality thermoelectric actuator designed for precise control of underfloor heating manifolds and zone valves. Operating at 230V AC with a normally closed (NC) mode, it ensures reliable shut-off when de-energized. The actuator features an M30x1.5 thread connection for easy screw-on mounting on standard valves. With a low power consumption of 2W and a stroke length of 3.5mm, it provides efficient and accurate operation. The IP54 protection class makes it suitable for indoor installations, while the visual position indicator allows for quick status checks. The self-extinguishing PC/PA housing ensures durability and safety.

Advantages

Reliable normally closed operation for fail-safe performance. Low power consumption reduces energy costs. Easy installation with M30x1.5 thread. Visual indicator simplifies maintenance. Compact design fits tight spaces.

Suitable for

• Underfloor heating systems
• Radiant heating manifolds
• Zone valve control
• Hydronic heating systems

Key specifications

• Actuator Type: Thermoelectric
• Operating Voltage: 230V AC
• Operating Mode: Normally Closed (NC)
• Thread Connection: M30x1.5
• Power Consumption: 2 W
• Stroke Length: 3.5 mm
• Opening/Closing Time: Approx. 3-5 minutes
• Protection Class: IP54
• Ambient Temperature Range: 0°C to 60°C
• Cable Length: 90 cm
• Visual Position Indicator: Yes
• Actuating Force: 100 N
• Housing Material: Self-extinguishing PC/PA
• Certification: CE

Recommendations

For optimal performance, pair with ENGO Controls thermostats and manifolds. Ensure proper voltage compatibility before installation.
