Držák Hikvision DS-1663ZJ

The Hikvision DS-1663ZJ is a universal camera mount designed for reliable support of security cameras in both indoor and outdoor installations. Compact and robust, the mount accommodates cameras up to 30 kg while maintaining a low profile with a diameter of 11.7 cm and a height of 57 mm. Constructed for stability and ease of installation, its white finish integrates unobtrusively with most environments.

Advantages

This mount offers stable mechanical support for a wide range of camera models and sizes while remaining lightweight at approximately 380 g. Its compact dimensions reduce visual impact on façades and ceilings, and the durable construction provides long-term performance in various installation conditions. The neutral white color improves aesthetic integration and helps conceal the mount in many settings.

Suitable for

• Ceiling-mounted surveillance cameras in offices and retail spaces
• Wall installations for outdoor cameras on building exteriors
• Mounting larger dome or bullet cameras up to 30 kg
• Environments requiring discreet, low-profile mounting solutions

Key specifications

• Maximum supported camera weight: 30 kg
• Outer diameter: 11.7 cm
• Height: 57 mm
• Net weight: 380 g (approx.)
• Color: white
• Suitable for indoor and outdoor use

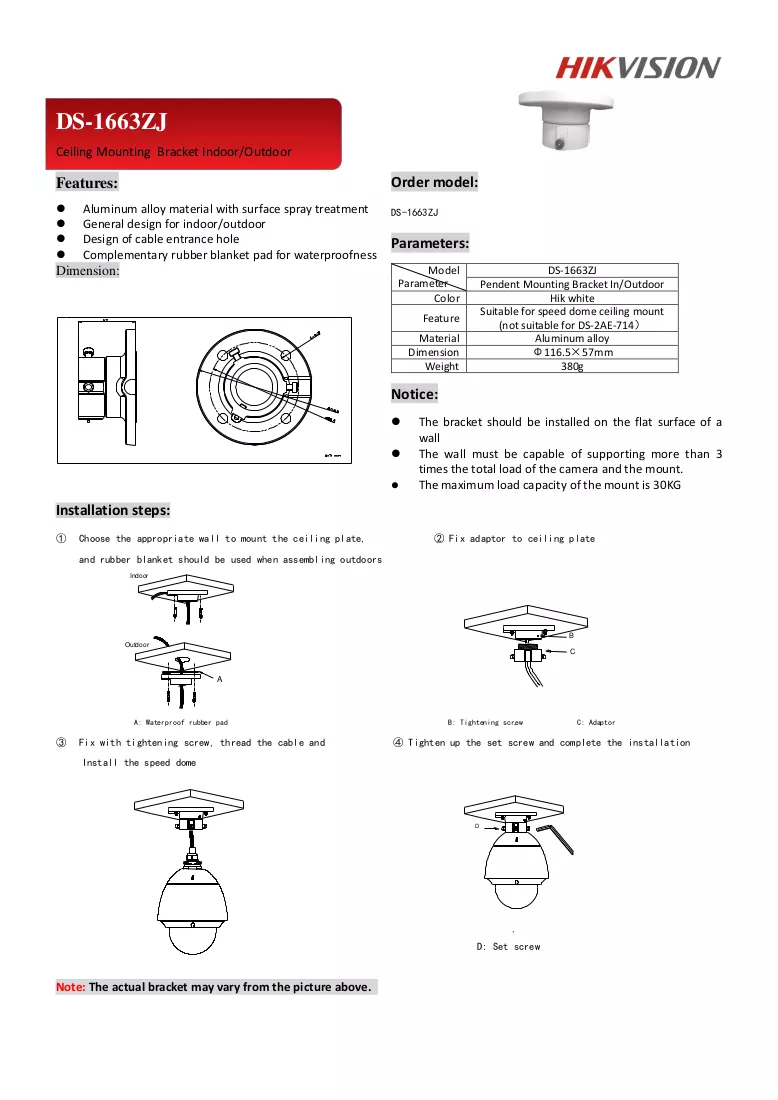

How to use

Choose a stable mounting surface and verify that it can safely bear the combined weight of the mount and the camera. Mark and drill mounting holes according to the mount's base pattern, insert appropriate anchors for the substrate, and secure the mount with suitable screws. Attach the camera to the mount and ensure all fasteners are tightened to prevent movement. Route cables as required for power and signal, and perform final alignment and focus adjustments before sealing or weatherproofing exterior connections.

Recommendations

Use corrosion-resistant fasteners for outdoor installations and follow local building codes. Verify compatibility with the camera's base and mounting brackets before installation. For installations near dynamic loads or vibrations, consider additional mechanical support or anti-vibration measures to maintain alignment.
