Držák CPU pod stůl Equip 650892

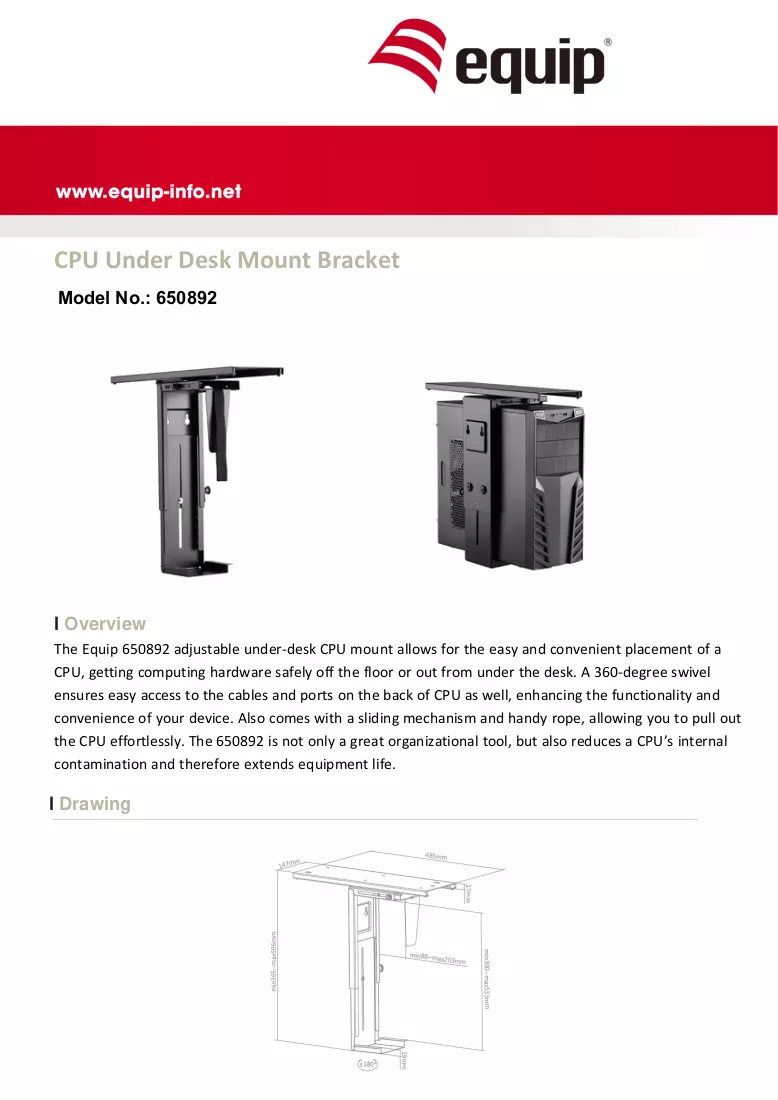

The Equip 650892 adjustable under-desk CPU mount provides a secure and space-saving solution for placing a desktop chassis off the floor and out from under the desk. The bracket supports chassis up to 10 kg, with an adjustable height range from 365 mm to 596 mm and external dimensions of 485 mm width and 147 mm depth. Its design helps reduce internal dust contamination and improves access to rear ports and cables.

Advantages

The mount offers a 360-degree swivel for full access to cable ports, a sliding mechanism with a pull rope for effortless extraction, and a compact design in black that keeps the CPU stable and out of the way. It is lightweight yet sturdy and helps maintain a tidy workspace while extending equipment life by reducing dust intake.

Suitable for

• Desktop chassis up to 10 kg
• Office desks and home workstations
• Environments where cable access and device cleaning are required
• Users who need to save floor and desk space

Key specifications

• Type: Under desk CPU holder
• Maximum weight capacity: 10 kg
• Adjustable height: 365 mm – 596 mm
• External dimensions (W × D): 485 mm × 147 mm
• Product weight: 4.17 kg
• Colour: Black
• Brand: EQUIP, MPN: 650892, EAN: 4015867222188

How to use

Attach the bracket securely under a stable desk following the manufacturer's mounting points and instructions. Place the desktop chassis into the holder, adjust the height to fit the case, and secure it according to the bracket's clamps or fasteners. Use the 360-degree swivel to position the rear of the chassis for cable connection and use the sliding mechanism with the pull rope to pull the CPU out when maintenance or cable changes are required.

Recommendations

Do not exceed the 10 kg maximum weight capacity and ensure the desk mounting surface is strong enough to support the combined load. Periodically clean around the mounted chassis to minimise dust build-up and inspect fasteners for tightness to maintain safe operation.
