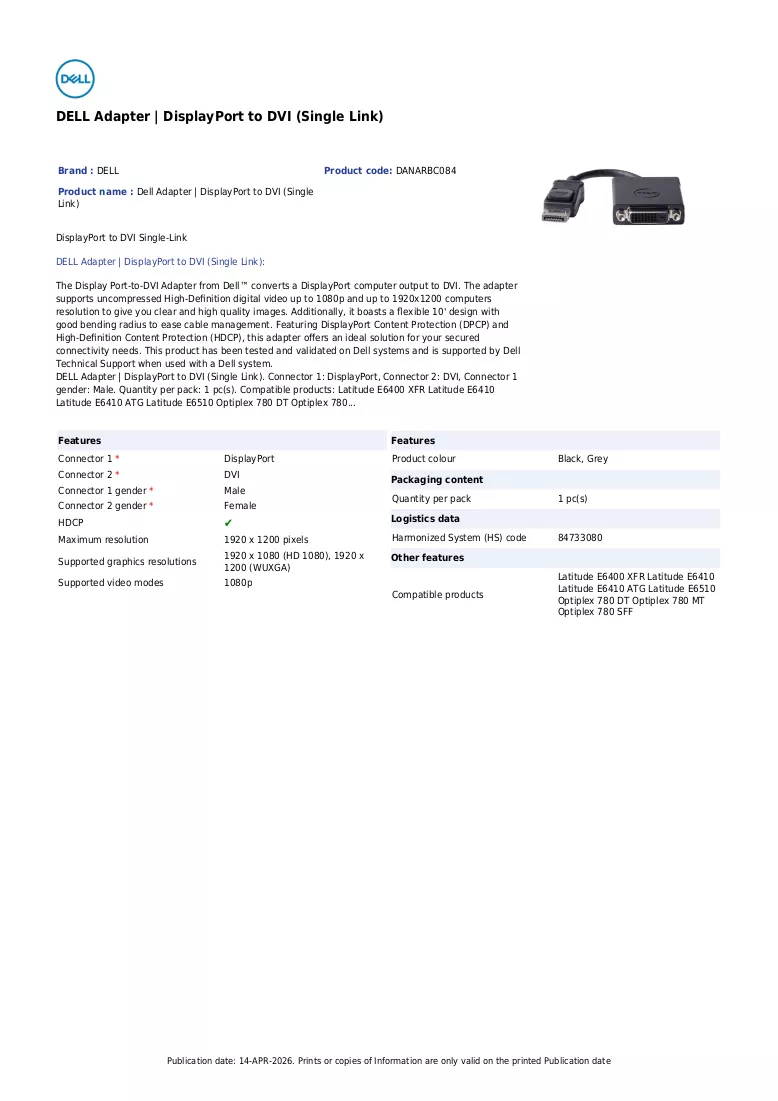

DELL adaptér | DisplayPort na DVI (Single Link)

The Dell DisplayPort-to-DVI adapter converts a DisplayPort computer output to a DVI connection, supporting uncompressed high-definition digital video up to 1080p and resolutions up to 1920x1200. The adapter features a male DisplayPort connector and a DVI connector and is compatible with a range of systems including Latitude E6400, E6410, E6510 and Optiplex 780 DT. It has a flexible 10' cable design with a good bending radius for easier cable management and includes DisplayPort Content Protection (DPCP) and High-Definition Content Protection (HDCP). This product has been tested and validated on Dell systems and is supported by Dell Technical Support when used with a Dell system.

Advantages

The adapter provides reliable conversion from DisplayPort to DVI (Single Link) enabling clear digital video up to 1080p and supporting up to 1920x1200 resolution. Its flexible 10' cable and favorable bending radius simplify routing and cable management. Built-in DPCP and HDCP support secure playback of protected content. Designed and validated for Dell systems, it is covered by Dell technical support when used with compatible Dell hardware.

Suitable for

• Connecting laptops with DisplayPort output to DVI monitors or projectors
• Workstations and desktops that require DisplayPort-to-DVI conversion (e.g., Optiplex, Latitude models)
• Office AV setups where HD digital video up to 1080p is required

Key specifications

• Connector 1: DisplayPort (male)
• Connector 2: DVI (Single Link)
• Maximum supported video: up to 1080p; up to 1920 x 1200
• Cable length: 10' (flexible with good bending radius)
• Content protection: DPCP and HDCP
• Colour: Black/Grey
• Manufacturer part number (MPN): DANARBC084
• EAN: 5712505743249

How to use

Connect the male DisplayPort end to the DisplayPort output on your computer or laptop. Attach the DVI connector to the DVI input of your monitor or projector. Ensure both devices are powered on and select the appropriate input on the display. The adapter supports standard single-link DVI resolutions; adjust display settings on the computer if needed to set the desired resolution (up to 1920x1200).

Recommendations

Use this adapter with Dell systems where possible to maintain validated compatibility and access Dell Technical Support. For best results, avoid sharp bends near the connectors and confirm that the display input supports single-link DVI resolutions up to 1920x1200.
