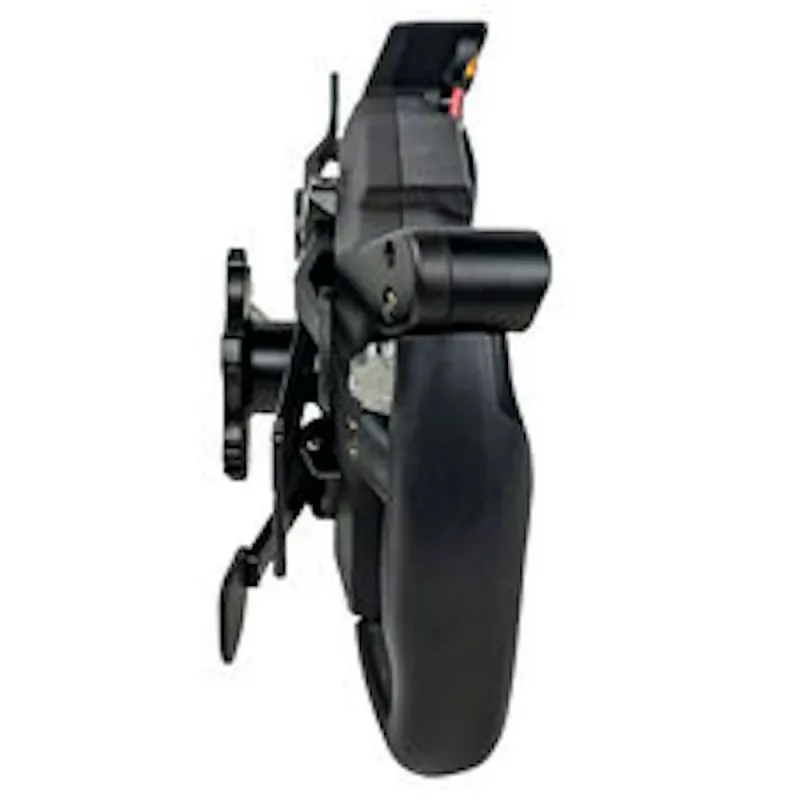

Conspit Advanced Bundle (20Nm)

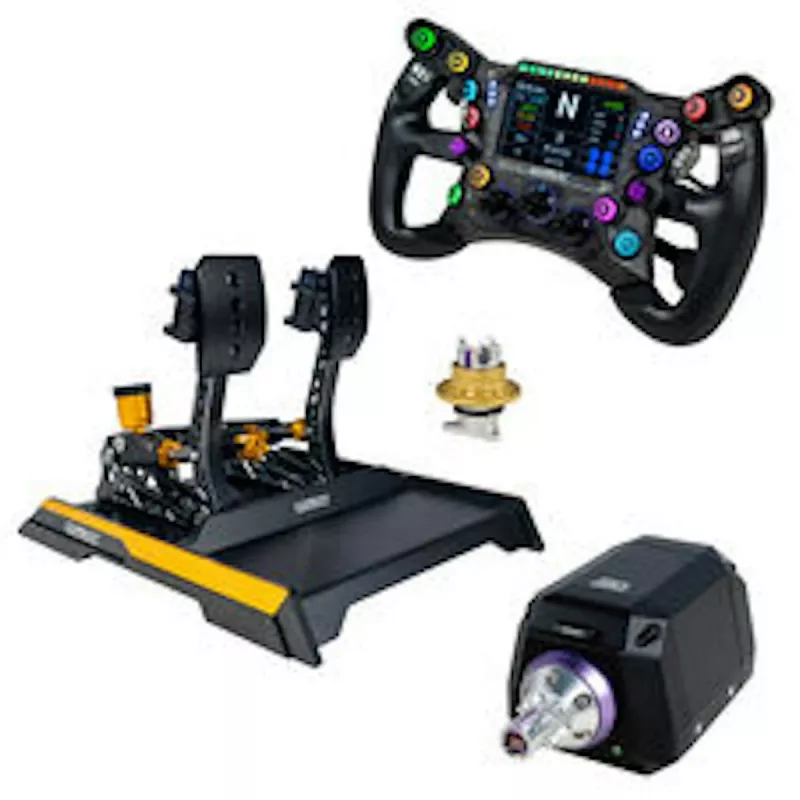

Experience the pinnacle of force feedback with the Conspit GABU-865 Advanced Bundle, a complete direct drive sim racing system delivering 20 Nm of peak torque through a CNC-machined aluminum servo motor. This bundle includes a GT-style steering wheel wrapped in Alcantara and a 3-pedal set with a load cell brake, ensuring every detail from kerb strikes to understeer is transmitted with ultra-low latency and 22-bit encoder precision.

Advantages

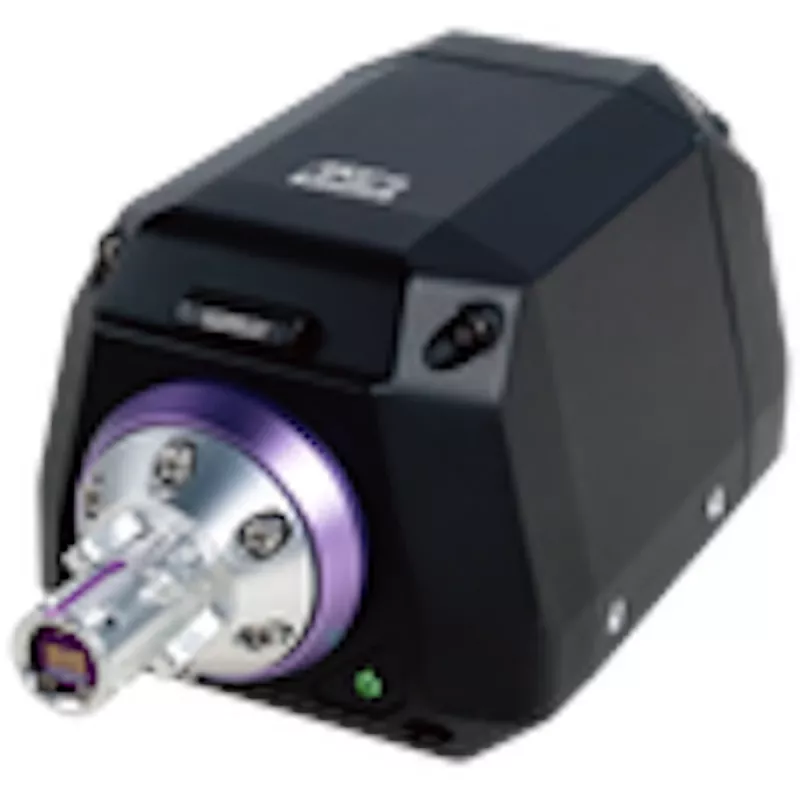

The GABU-865's direct drive motor provides instantaneous response and immense dynamic range, allowing you to feel subtle tire slip and violent collisions alike. The proprietary quick release system lets you swap wheels in seconds, while the included pedals feature a load cell brake for consistent, muscle-memory braking. With a 1000 Hz USB polling rate and passive cooling, the system remains reliable during endurance races. The software suite offers unlimited rotation adjustment up to 2520 degrees, catering to any car or truck simulation.

Suitable for

• Sim racers seeking a high-torque, professional-grade direct drive wheel for PC titles like iRacing, Assetto Corsa Competizione, and rFactor 2.
• Users upgrading from gear or belt-driven wheels who demand realistic force feedback and minimal latency.
• Enthusiasts building a dedicated sim rig with front or bottom mounting options.
• Drivers who value a complete ecosystem with included wheel, pedals, and software.

Key specifications

• Peak torque: 20 Nm direct drive servo motor
• Steering wheel: 300 mm GT-style, Alcantara/leather, magnetic shifters
• Pedals: 3-pedal set with load cell brake and Hall-effect sensors
• Encoder: 22-bit (262,144 PPR) absolute position sensor
• Connectivity: USB-B to PC, 1000 Hz polling rate
• Mounting: Front mount and bottom mount with M6 threads
• Power: External AC/DC adapter (48V, 10A)
• Rotation: Unlimited, software adjustable up to 2520°
• Material: CNC machined aluminum and steel
• Compatibility: Windows 10/11

Recommendations

For the ultimate immersion, pair the GABU-865 with a rigid aluminum profile cockpit and a high-refresh-rate monitor. The load cell brake benefits from a firm mounting plate, and the quick release allows easy wheel changes between GT and formula styles. Use the Conspit configuration software to fine-tune force feedback per car and track.
