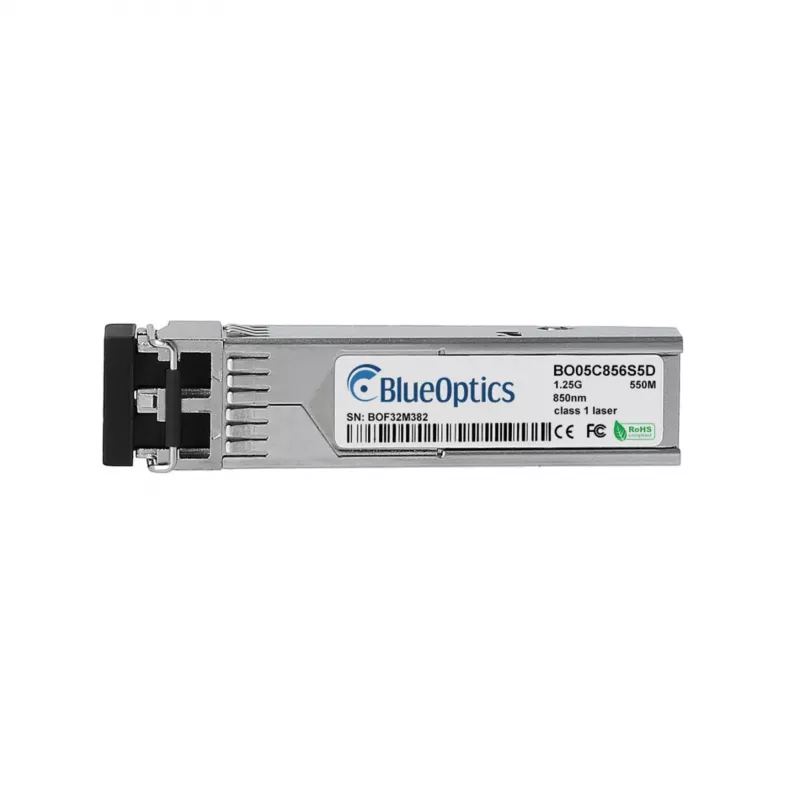

BlueOptics BO05C856S5D-HV SFP transceiver LC-Duplex

The BlueOptics BO05C856S5D-HV is a high-performance SFP transceiver designed for reliable data transmission over multi-mode fiber. With a data rate of 1.25 Gbps and a wavelength of 850 nm, it supports distances up to 550 meters, making it ideal for Gigabit Ethernet and Fibre Channel applications. This hot-pluggable module features an LC-Duplex connector and is fully MSA compliant, ensuring interoperability with a wide range of networking equipment.

Advantages

This transceiver offers low power consumption (<1 W) and supports Digital Diagnostic Monitoring (DDM) for real-time performance monitoring. Its VCSEL transmitter and PIN receiver provide efficient and reliable optical performance. The metal housing with EMI shielding ensures durability and minimal interference.

Suitable for

• Gigabit Ethernet networks (1000BASE-SX)
• Fibre Channel storage area networks
• Data center interconnects
• Enterprise network upgrades

Key specifications

• Form Factor: SFP
• Data Rate: 1.25 Gbps
• Wavelength: 850 nm
• Max Distance: 550 m
• Fiber Type: Multi-Mode Fiber (MMF)
• Connector: LC-Duplex
• DDM/DOM: Yes
• Power Supply: 3.3 V
• Power Consumption: <1 W
• Operating Temperature: 0°C to 70°C

Recommendations

For optimal performance, pair this transceiver with OM3 or OM4 multi-mode fiber cables. Ensure your switch or router supports SFP modules and is configured for the appropriate speed and duplex settings.
