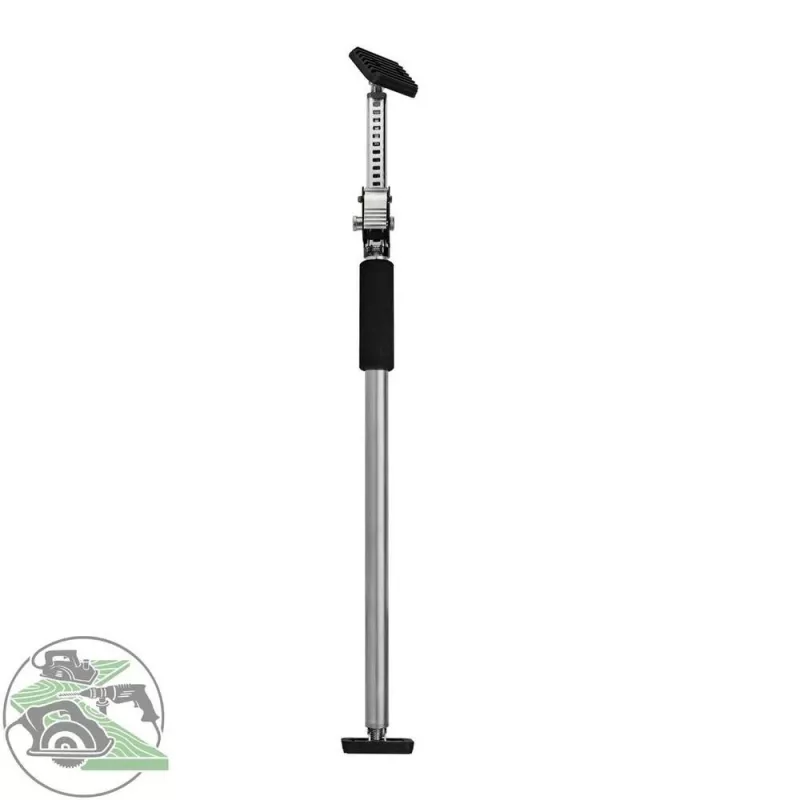

Sádrokartonová podpěra Bessey ST125

The Bessey ST125 drywall support is a telescopic support designed to position and hold plasterboard, wooden boards, panels, battens, metal profiles, foils and light fixtures during installation. Constructed from steel with rubber contact surfaces and an adjustable base, it is suitable for use on level and sloping surfaces thanks to base plates with a swivel range of -45° to +45°.

Advantages

The support offers quick, two-step fixation: initial rough pre-setting is achieved by the telescoping inner tube with fast locking, and final clamping is done by turning the foam grip. Its special steel tubes provide a maximum load capacity up to 60 kg, and an additional lock secures the release button. Rubber contact surfaces on top and bottom ensure non-slip, damage-free holding on sensitive materials.

Suitable for

• Positioning and holding plasterboard sheets during installation
• Supporting wooden planks, panels and battens
• Holding metal bars and profiles
• Fixing foils and light bodies in place
• Use on sloping roofs and angled surfaces

Key specifications

• Brand: Bessey
• Model: ST125
• MPN: ST125
• EAN: 4008158031590
• Material: steel construction with rubber contact surfaces
• Base plate size: 8.5 x 6.5 cm with swivel range -45° to +45°
• Maximum load capacity: up to 60 kg
• Telescopic inner tube with quick locking and foam grip for final clamping

How to use

Set the support vertically between floor and ceiling or between support surfaces. Adjust the telescoping inner tube to the required height and engage the quick lock for rough pre-setting. Position the drywall or other material on the rubber contact surfaces and turn the foam grip to perform the final clamping. If working on an inclined surface, adjust the base plate swivel to match the angle before final tightening.

Recommendations

Use the Bessey ST125 within its specified maximum load of 60 kg and ensure the additional release-button lock is engaged before leaving the support under load. Inspect rubber contact surfaces for wear and clean them from debris to avoid surface damage to sensitive materials.
