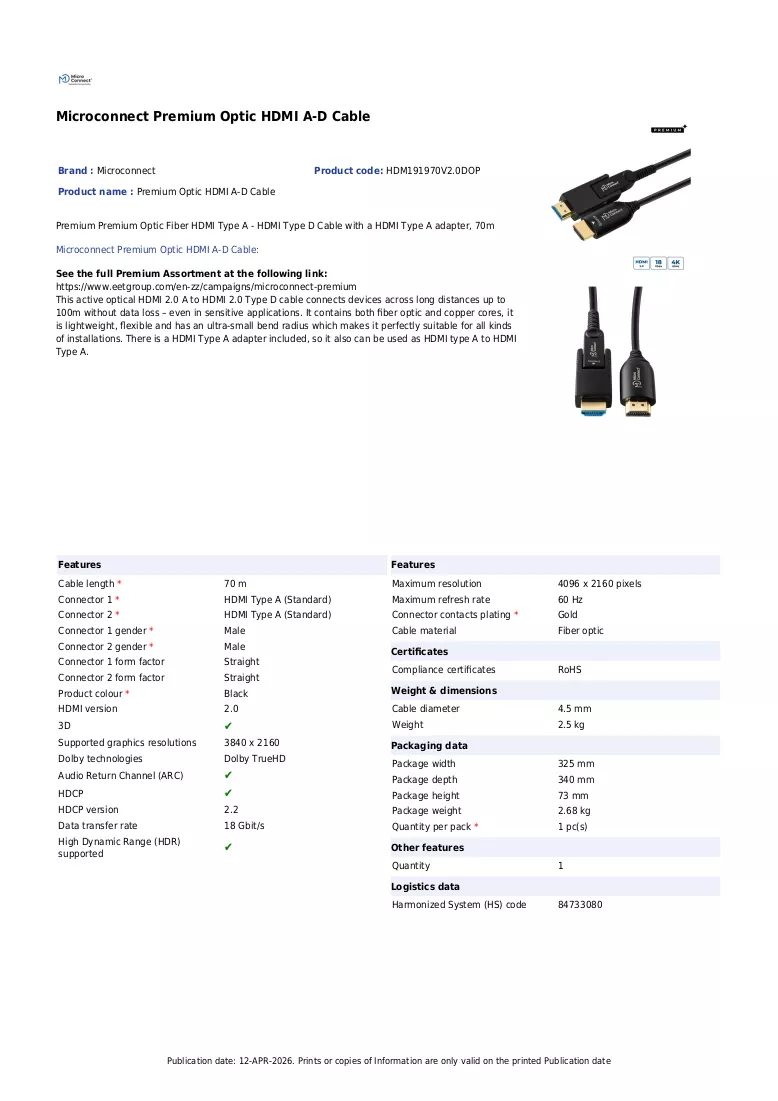

Kabel HDMI A-D MicroConnect HDM191970V2.0DOP

The MicroConnect HDM191970V2.0DOP is an active optical HDMI 2.0 A to HDMI 2.0 Type D cable designed for long-distance connections up to 70 m. The hybrid construction combines fiber optic and copper cores to maintain signal integrity over extended runs while remaining lightweight and flexible. The cable supports HDMI 2.0 features with a maximum resolution up to 4096 x 2160 pixels, 18 Gbit/s bandwidth, 3D and Audio Return Channel (ARC). A detachable HDMI Type A adapter is included so the product can be used as HDMI Type A to HDMI Type A when required.

Advantages

This active optical cable delivers reliable high-definition audio and video transmission over long distances with minimal signal loss thanks to its fiber-and-copper hybrid design. Its ultra-small bend radius and flexible, lightweight jacket simplify routing in installations with limited space. Gold-plated connectors reduce contact resistance and help ensure consistent signal quality. The included HDMI Type A adapter increases compatibility with standard HDMI ports.

Suitable for

• Long-distance AV installations in conference rooms and auditoriums
• Professional video distribution and digital signage
• Connecting cameras, media players or set-top boxes to displays located far from source devices
• Installations requiring small bend radius and flexible cabling routes

Key specifications

• Cable length: 70 m
• Standard: HDMI 2.0
• Maximum resolution: 4096 x 2160 pixels
• Bandwidth: up to 18 Gbit/s
• Connectors: HDMI Type A (with adapter) and HDMI Type D (Micro)
• Features: 3D, ARC
• Colour: Black
• Weight: 2.5 kg

How to use

Connect the HDMI Type D (Micro) end to the device with the Micro HDMI port and the HDMI Type A end (or attached adapter) to the display or AV receiver. Ensure both devices are powered on and set to the correct input source. For optimal performance, avoid sharp bends and excessive twisting; route the cable respecting its small bend radius. If using as HDMI A to HDMI A, attach the included Type A adapter to the Type D connector as instructed.

Recommendations

For stable 4K@60Hz operation, verify that source and display support HDMI 2.0 and HDCP requirements. Avoid running the cable alongside high-power electrical lines to reduce the risk of interference, and secure cable runs in permanent installations to prevent strain on connectors.
